6.7 Powerstroke CCV Reroute Vs Delete: Which Is Right for Your Build?

Every internal combustion engine produces blow-by — combustion gases that slip past the piston rings and pressurize the crankcase. The factory CCV system (Closed Crankcase Ventilation) is designed to manage that pressure by routing those gases back into the intake stream where they are theoretically re-burned during combustion.

On paper, it's an elegant closed-loop solution. In practice, those blow-by gases carry oil vapor with them, and that vapor has to go somewhere. According to trade industry research on diesel CCV systems ^[1], the oil mist in crankcase gases accumulates progressively in the intercooler core, charge pipes, and intake manifold — a phenomenon diesel owners call boot soak or intercooler soak.

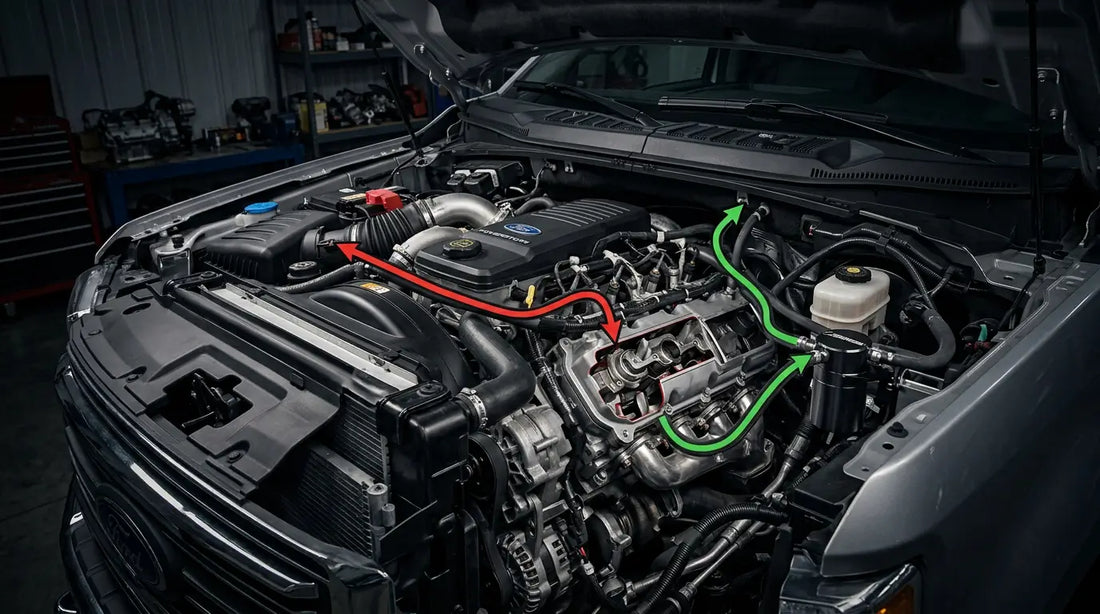

The 6.7 Powerstroke's factory CCV routes vapors from the valve cover breather directly into the intake upstream of the turbocharger. That means every molecule of oil mist passes through the turbo compressor wheel before it ever reaches the intake manifold. Over time — especially on higher-mileage trucks and those used for heavy towing — this buildup becomes significant enough to affect charge air temperatures and turbo efficiency.

Here's what that looks like in the real world: pull an intake boot on a stock 6.7 Powerstroke with 80,000+ miles and you'll find the inside coated with a dark, oily film. That's CCV contamination. It's not catastrophic in small amounts, but it's cumulative — and it's exactly why so many 6.7 owners look at CCV reroute or delete options as part of a broader performance or maintenance strategy.

The EPA's transportation air pollution framework ^[3] mandates that crankcase emissions from diesel engines be controlled through closed-system designs — which is precisely why Ford routes blow-by back into the intake rather than venting it to atmosphere on factory trucks.

This is the core question — and the terminology gets muddied fast in the aftermarket world. Let's define both cleanly.

CCV Reroute: You disconnect the factory CCV outlet from the intake system and redirect the crankcase vapor line to an external catch can or oil separator. The separator captures liquid oil droplets before the remaining vapor is vented or routed elsewhere. Your intake stays clean because the oil mist never enters the charge stream. This is the moderate approach — the crankcase is still vented, but the vapor takes a detour through filtration before going anywhere.

CCV Delete: You remove the factory CCV hardware entirely and vent the crankcase directly to atmosphere, usually through a filtered breather mounted on the valve cover or crankcase. No separator, no recirculation — just a straight path out. As noted in installation documentation for the 6.7 Powerstroke CCV Delete Kit covering 2011–2026 model years ^[18], this eliminates the factory ventilation path entirely rather than simply redirecting it.

The practical outcome is similar for both: no more oil vapor in your intake tract. The difference is in how completely each mod separates the crankcase from the intake, and what that means for emissions compliance and maintenance.

A reroute with a catch can requires periodic draining — depending on your driving style and blow-by volume, that might be every 3,000–5,000 miles or more frequently on a high-mileage engine. A delete requires less ongoing maintenance but creates a more complete break from the factory system.

Both mods are intended to address the same root problem: the factory CCV design prioritizes emissions compliance over long-term intake cleanliness, and the 6.7 Powerstroke's high-performance turbo system amplifies the contamination effect compared to naturally aspirated engines.

Here's the full breakdown across every factor that matters for your build decision:

One critical nuance: neither of these mods is a direct horsepower upgrade. The gains are indirect — a cleaner intake charge, lower charge air temps over time, and protection of your turbo compressor from oil coating. Treat both as maintenance and longevity mods, not power mods.

Fitment is one of the first questions to answer before ordering any CCV hardware. Here's the complete vehicle compatibility breakdown for the 6.7 Powerstroke platform:

The TDD CCV Delete Kit for the Ford Powerstroke 6.7L (2011–2026) ^[18] is one of our most straightforward installs — no tuning required, no ECM changes, no DTC codes triggered. The 6.7 Powerstroke's factory ECM does not monitor crankcase pressure through a dedicated sensor loop the way some platforms do, which means removing the CCV hardware doesn't set fault codes on its own.

If your build also involves a full DPF and EGR delete, the CCV Delete Kit pairs cleanly with any of our year-specific Full Delete Bundles ^[33]. Running a deleted and retuned 6.7 Powerstroke without addressing CCV leaves one contamination pathway open — pairing all three mods is the complete solution for a dedicated performance build.

Here's the profile of a truck that belongs on the reroute path:

• Daily driver or work truck — You're putting 15,000–30,000 miles per year on this truck, mostly highway and towing. You want cleaner boots and intercoolers without the headache of running a fully open crankcase vent on a street-driven vehicle.
• States with emissions testing — California (CARB), Colorado, New York, and a growing number of states inspect for visible crankcase vent modifications. An open atmospheric vent is an easy fail. A catch can reroute is far less visible and far less likely to draw attention.
• Warranty-adjacent builds — If your truck is still under any form of extended warranty or service contract, a reroute with a catch can is a much softer modification than a full delete.
• Trucks already seeing boot soak — If you're pulling intake boots that are already coated in oil film, a reroute stops further accumulation immediately. You don't need to go full delete to solve the problem.

The EPA's framework for controlling crankcase emissions from diesel engines ^[3] specifically requires that blow-by gases be captured and controlled in road-going vehicles — atmospheric venting is a direct conflict with that requirement on a street-driven truck. A properly installed catch can reroute keeps crankcase gases contained, which is why it's the compliance-friendlier option.

According to industry CCV technical guides ^[1], the quality of the separator or catch can matters significantly. A cheap baffled catch can may not capture fine oil aerosol mist effectively at highway RPM. Look for a true oil separator with a coalescing element — it'll work harder and need less frequent draining than a basic baffled design.

For towing applications specifically, a reroute is the practical choice. Under load, blow-by volume increases as cylinder pressures rise. A catch can with adequate volume — look for 300mL capacity minimum — handles that increased vapor load without overflowing between service intervals.

The CCV delete has a specific and well-defined use case. Here's who it's actually built for:

• Off-road-only builds — If this truck never sees public roads, an atmospheric vent is a non-issue from a compliance standpoint. Trail rigs, farm trucks, and sand-running builds are the natural home for a full CCV delete.
• Competition trucks — Sled pull and drag builds running elevated boost and high cylinder pressures produce significantly more blow-by than a stock engine. Routing that volume through a small catch can isn't practical. An open filtered vent handles the volume cleanly.
• High-mile builds where intake cleaning is part of a rebuild — If you're already doing a top-end refresh and cleaning 100,000 miles of CCV soot from the intake manifold, a delete prevents the problem from recurring.
• Already-deleted trucks — If you've gone through a full DPF and EGR delete with a tune, a CCV delete is the logical next step to completely clean up the intake system. Our TDD CCV Delete Kit for the 6.7 Powerstroke (2011–2026) ^[18] is designed to pair with full delete configurations.

On the maintenance side, a properly installed CCV delete running a filtered breather on the valve cover is low-touch. You're checking and cleaning the breather filter on an interval — typically every 15,000–25,000 miles — rather than draining a catch can every few thousand miles. For off-road builds where the truck isn't accumulating road miles quickly, this is genuinely convenient.

The tradeoff is real, though. According to the EPA's published documentation on diesel emissions control requirements ^[2], tampering with closed crankcase ventilation systems on road-registered vehicles falls under the same anti-tampering provisions as other emissions equipment. Know what your truck's primary use case actually is before committing to this path.

This is one of the most common questions we hear, and the answer is reassuring: the 6.7 Powerstroke's PCM does not monitor CCV flow through a dedicated sensor the way it monitors EGR flow or DPF backpressure. There is no differential pressure sensor or flow meter specifically tracking the crankcase ventilation path.

That means a properly installed CCV reroute or delete does not set any DTCs on its own. You won't see a P0xxx crankcase pressure code appear after the mod. This is a meaningful difference from EGR deletes — where the ECM actively monitors EGR valve position and flow, and will immediately flag fault codes if you pull the EGR hardware without a supporting tune.

The CCV modification is what the industry sometimes calls a tune-optional mod. You don't need to flash the PCM to run a CCV reroute or delete on the 6.7 Powerstroke. The factory calibration continues to run normally because it has no sensor inputs from the CCV circuit to reference.

That said, if you're pairing a CCV delete with a full DPF and EGR delete — which is a common combination on dedicated builds — you absolutely need a tune for the DPF and EGR components. The EZ LYNK Auto Agent 3 for Ford Powerstroke (2008–2022) ^[28] and the BullyDog BDX for Ford Powerstroke (2011–2019) ^[16] are both solid tuner options for the full delete package. The CCV Delete Kit ^[18] from The Diesel Dudes pairs cleanly with either tuner platform.

One edge case to watch: if your engine has elevated blow-by from worn rings or a failing turbo seal, removing the CCV system may cause your crankcase to pressurize more than expected, potentially pushing oil past valve cover gaskets or the oil fill cap. Address any underlying engine health issues before installing a delete — the mod won't fix a blow-by problem caused by worn internals.

If you're building a full delete setup on your 6.7 Powerstroke, here's how the CCV mod fits into the overall sequence and what you need at each stage:

1. DPF Delete Pipe — The first mod. Removes the Diesel Particulate Filter and catalytic converter from the exhaust stream, dropping exhaust backpressure and allowing the turbo to spool more freely. TDD offers 4-inch and 5-inch DPF delete pipe options for the 6.7 Powerstroke ^[21][22] across all generation years.
2. Delete Tune — Required simultaneously with or immediately before the DPF delete pipe install. The PCM must be reflashed to disable DPF regeneration cycles, EGR flow monitoring, and DEF injection. Without a tune, the truck will derate and may not run. Our Full Delete Bundles ^[33] include the tuner and pipe together.
3. EGR Delete Kit — The EGR (Exhaust Gas Recirculation) system routes hot exhaust gas back into the intake to reduce NOx. Deleting it eliminates one of the primary sources of intake carbon buildup and coolant contamination risk. TDD's EGR Delete Kit for the 6.7 Powerstroke (2011–2025) ^[7] uses a pass-through design that maintains coolant circuit integrity.
4. CCV Delete or Reroute — The final piece. With DPF and EGR both addressed, the only remaining contamination pathway into the intake is through the CCV system. A CCV delete ^[18] or a quality catch can reroute closes that loop completely.

The S&B Cold Air Intake for the 6.7 Powerstroke ^[41] is a natural complement to this sequence — feeding cleaner, cooler air into the now-uncontaminated intake system. Once you've cleaned up the intake side with EGR and CCV mods, a cold air intake maximizes the benefit of that clean charge stream.

The Diesel Dudes Technical Team has processed hundreds of full delete builds on 6.7 Powerstroke trucks. The combination of DPF delete pipe, EGR delete, tune, and CCV delete is the complete solution for a dedicated performance or off-road build. Each mod addresses a different contamination or restriction point in the system.
