Best EGR Delete Kits: Platform-by-Platform Buyer's Guide

EGR (Exhaust Gas Recirculation) is an OEM emissions control strategy that routes a metered portion of exhaust gas back into the intake manifold. The goal is NOx reduction — by diluting the intake charge with inert exhaust gas, combustion temperatures drop, which lowers the formation of nitrogen oxides (NOx). Federal emissions standards under 40 CFR Part 86 govern these requirements for highway diesel engines ^[4].

A full EGR delete kit typically includes:

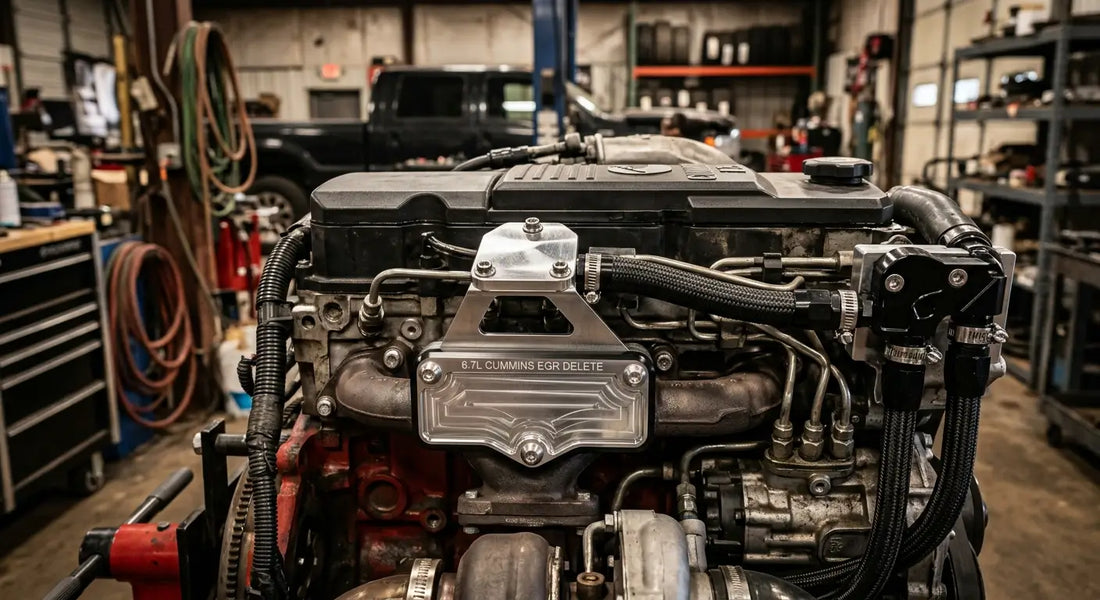

• EGR valve block-off plate — seals the intake port where the EGR valve connected
• EGR cooler block-off plates — caps the exhaust-side and coolant-side ports on the cooler mounting
• Coolant reroute fittings and hose — critical on platforms where the EGR cooler was plumbed directly into the cooling circuit
• Gaskets, hardware, and fasteners — platform-specific to match OEM bolt patterns

Here's what a lot of budget kit sellers won't tell you: hardware alone does not complete the delete. The ECM must be recalibrated via a delete tune to disable EGR-related fault detection, disable EGR solenoid commands, and recalibrate fueling and boost targets for the new intake conditions. Skip the tune and you get a check engine light, a derate, or both.

The coolant reroute component is especially misunderstood. On engines like the 6.7L Cummins and 6.0L Powerstroke, the EGR cooler sits in the engine's coolant circuit. Remove the cooler without rerouting coolant flow and you create a dead-end passage — potential for hot spots, cavitation, and overheating. Any kit that doesn't address this for applicable platforms is incomplete by definition.

According to The Diesel Dudes Technical Team ^[11], the correct installation sequence is: tune first, then physical removal — and never drive the truck after the tune is installed until the DPF and EGR hardware are addressed. That sequencing prevents ECM faults from locking the truck mid-job.

Let's be direct about this — no legal gray area exists for on-road use. The federal Clean Air Act under 42 U.S.C. § 7522(a)(3)(A) explicitly prohibits any person from removing or rendering inoperative any device or element of design installed on a certified motor vehicle in compliance with emissions regulations. 42 U.S.C. § 7522(a)(3)(B) extends that prohibition to anyone who manufactures, sells, or installs a part whose principal effect is to bypass or defeat an emissions control device.

The EGR valve, EGR cooler, and associated control hardware are all part of the certified emissions system on modern diesel pickups. Deleting them on a street-driven truck makes you liable under both provisions.

The EPA has made this a priority enforcement area. According to the EPA's National Enforcement and Compliance Initiative on Stopping Aftermarket Defeat Devices ^[2], known sales of defeat devices for diesel trucks between 2009 and 2020 resulted in more than 570,000 tons of excess NOx and 5,000 tons of excess particulate matter (PM) over the lifetime of affected trucks. That scale of pollution is exactly why enforcement budgets and penalties are substantial.

The U.S. Department of Energy's Alternative Fuels Data Center confirms that under 40 CFR Part 85, removing or defeating a certified emissions device constitutes tampering — a violation that carries significant fines ^[7]. Penalties under 42 U.S.C. § 7524 can reach tens of thousands of dollars per violation for individuals, and far more for commercial shops and resellers.

Some states also run their own emissions inspection programs that will flag or reject vehicles with deleted EGR/DPF/SCR systems, resulting in registration denial.

The bottom line: EGR delete kits sold by The Diesel Dudes are intended strictly for off-road and competition use. If your truck rolls on public roads, understand your legal exposure before making any modifications.

Legal Notice: Removing or tampering with emissions equipment may violate the federal Clean Air Act and state emissions regulations. Penalties can include fines up to $5,000 for individuals. Check your local and state laws before modifying emissions equipment on any vehicle driven on public roads.

Understanding why owners seek EGR deletes starts with understanding what EGR actually does to the engine over time. Routing exhaust gas through the intake isn't a neutral act — it deposits soot, unburned hydrocarbons, and acidic compounds directly onto intake valves, manifolds, and intercooler cores.

Common EGR failure modes across diesel platforms:

• EGR valve sticking or failing — Carbon buildup causes the valve to stick open or closed, triggering DTCs and derate conditions. Common on 6.7L Cummins (2007.5–present) and 6.7L Powerstroke (2011–present).
• EGR cooler cracking or internal failure — The heat exchanger that cools exhaust gas before it re-enters the intake is subjected to extreme thermal cycling. On the 6.0L Powerstroke, EGR cooler failure is the single most notorious reliability issue on the platform, often leading to coolant contamination of the intake and catastrophic overheating.
• Intake manifold soot loading — Accumulated soot and oil mist restricts airflow, degrades turbo response, and can trigger boost-related fault codes on LML and L5P Duramax engines.
• Intercooler contamination — Oily, sooty deposits coat intercooler fins and reduce heat transfer efficiency, raising intake air temperatures under load.
• Sensor-related DTCs and limp mode — EGR flow sensors, differential pressure sensors, and temperature sensors all generate fault codes when the EGR system malfunctions, often forcing reduced-power derates at the worst possible time.

As 10-4 Magazine noted in their analysis of modern diesel emissions systems ^[9], the complexity of stacked emissions hardware — EGR, DPF, SCR, DEF — creates multiple interdependent failure points that compound repair costs over a truck's service life.

For off-road and competition applications, removing the EGR system eliminates these failure modes entirely. A cleaner intake charge, reduced thermal load on the cooling system, and elimination of soot-related sensor faults are the primary mechanical benefits owners report when operating in off-road contexts.

Here's where most buyers go wrong: they search for the cheapest kit or the one with the most reviews on a marketplace site, without evaluating what's actually in the box. Let's break down what separates a properly engineered kit from the budget junk that floods the market.

Quality Criterion	What to Look For	Red Flags in Cheap Kits
Fitment Accuracy	Year-range specific; matches OEM bolt pattern exactly	"Universal fit" claims; no year range specified
Material	CNC-machined stainless steel or billet aluminum; thick flanges (≥ 3/8")	Thin stamped steel that warps under heat; rust-prone hardware
Coolant Reroute	Includes proper fittings and hose for coolant circuit continuity	No coolant reroute — leaves dead-end passages in cooling system
Kit Completeness	All gaskets, plates, clamps, and fasteners included	Missing gaskets or fasteners; requires sourcing extra parts
Tune Compatibility	Verified to work with a specific tuner platform (EFI Live, EZ LYNK, etc.)	Hardware sold without tuning support — ECM faults remain active
Support	Install documentation, video support, live tech assistance	No instructions; no customer support post-purchase

The coolant reroute issue is the one that bites owners most often with budget kits. On 6.7L Cummins and 6.0L/6.4L Powerstroke engines, the EGR cooler is integrated directly into the coolant circuit. Pull the cooler without a proper reroute and you either block flow entirely or leave a dead-end that creates steam pockets and localized overheating. A properly engineered kit addresses this with the correct diameter hose, fittings rated for coolant temperatures, and clear routing instructions.

Thin block-off plates are the other common failure point. A plate machined from 1/4" or thicker stainless steel resists warping under the thermal cycling of a diesel engine. Cheap stamped-steel plates warp, leak boost, and fail within one season of hard use. That's not a performance modification — that's an expensive parts replacement cycle.

The Diesel Dudes Technical Team ^[11] has validated kits across all three major diesel platforms. Here's what you need to know for each engine family — for off-road and competition applications.

6.7L Cummins (2007.5–2024)

The 6.7L Cummins has gone through three distinct emissions generations, each requiring a different kit configuration:

Year Range	Make/Model	Engine	Compatible Kit
2007.5–2009	Ram 2500/3500	6.7L Cummins	EGR Delete | 2007–2009 6.7L Cummins
2010–2024	Ram 2500/3500	6.7L Cummins	EGR Delete | 2010–2024 6.7L Cummins
2011–2025	Ford F-250/F-350/F-450	6.7L Powerstroke	EGR Delete | 2011–2025 6.7L Powerstroke
2008–2010	Ford F-250/F-350	6.4L Powerstroke	EGR Delete | 2008–2010 6.4L Powerstroke
2003–2007	Ford F-250/F-350	6.0L Powerstroke	EGR Delete | 2003–2007 6.0L Powerstroke
2007.5–2010	GM/Chevy Silverado/Sierra	6.6L Duramax LMM	EGR Delete | LMM Duramax
2011–2016	GM/Chevy Silverado/Sierra	6.6L Duramax LML	EGR Delete | LML Duramax
2017–2023	GM/Chevy Silverado/Sierra	6.6L Duramax L5P	EGR Delete | L5P Duramax

The 2013–2018 6.7L Cummins added SCR/DEF to the emissions stack, so the delete solution must address EGR, DPF, SCR, and DEF simultaneously through matched tuning — not just block-off plates. The 2019+ trucks added further calibration complexity. Always confirm your exact model year before ordering any kit.

6.7L Powerstroke (2011–Present)

Ford's 6.7L Powerstroke is a reverse-flow engine — the exhaust manifold is on the driver's side, the intake on the passenger side. This layout makes EGR plumbing more complex than on Cummins or Duramax platforms. Block-off plates must account for tight clearances around the turbo and charge air cooler piping.

The 6.7L Powerstroke EGR system also runs a high-pressure EGR cooler that can accumulate soot buildup over time, restricting EGR flow and triggering fault codes. Earlier 6.0L and 6.4L Powerstroke engines are far more notorious — the 6.0L's EGR cooler failure mode is well documented in Ford's own service information, often resulting in coolant ingestion, white smoke, and in extreme cases, hydrolocked cylinders.

For the 6.4L Powerstroke (2008–2010), the EGR system runs dual coolers. A proper delete kit must cap both cooler circuits and include the correct intake elbow. The TDD kit for this platform includes a high-flow intake elbow as part of the package — that's an engineering detail that cheap kits skip entirely.

Duramax LMM, LML, and L5P

General Motors has used EGR across all modern Duramax generations, but the system design evolved significantly:

• LMM (2007.5–2010): EGR valve and single cooler. Soot loading in the intake manifold is a known issue after high mileage. Delete kit must include all coolant circuit block-off hardware.
• LML (2011–2016): Added SCR/DEF system on top of EGR and DPF. A standalone EGR delete without addressing the full emissions stack leaves the tune incomplete and the truck prone to SCR-related faults.
• L5P (2017–2023): The most complex Duramax emissions system to date. EGR delete on the L5P requires specialized unlock tooling and a properly credentialed tune. The L5P also uses a CAN bus architecture that requires specific plug kits for clean installation.

According to the EPA's final rule on heavy-duty engine emissions standards under 40 CFR Part 86 ^[4], all modern diesel pickups must maintain certified emissions systems for on-road operation — reinforcing that any delete work on these platforms is strictly for off-road and competition environments.

Here's the problem with shopping for EGR delete parts across multiple suppliers: compatibility is rarely guaranteed. A block-off plate from one vendor, a coolant reroute kit from another, and a tune from a third — each may be individually "compatible" with your engine, but nobody has verified they work together as a system. That gap is where things go wrong.

The Diesel Dudes approach is different. Every EGR delete kit in the TDD lineup ^[11] is paired with a verified tuner option — EFI Live, EZ LYNK, or RaceMe Ultra depending on platform — and the hardware is validated to work with that tuning strategy. That's not marketing language — it's the difference between a truck that runs clean post-install and one that throws codes until you figure out what's conflicting.

What TDD's curated approach delivers:

• Platform-specific engineering: No universal kits. Every product is designed for a defined year range and engine generation.
• Matched tuning support: Hardware kits are paired with proven tuner options. TDD tech support can walk you through the install sequence from tune-first to hardware completion.
• Correct installation sequencing: Tune installs before physical removal. Air intake throttle valve is unplugged before tune installation. DPF/CAT pipe goes in before the EGR kit. This sequencing prevents ECM lockout mid-install — a mistake we see constantly from customers who sourced parts elsewhere.
• Post-purchase support: If you run into a fitment issue or a code you don't recognize, TDD's technical team is reachable by phone at (888) 830-2588.

The regulatory landscape is also evolving. As The Autopian reported in March 2026 ^[3], there is active legislative discussion around making certain diesel emissions modifications more accessible for working trucks and off-road use. Staying current on that landscape is part of what TDD tracks on behalf of customers.

Disclosure: The Diesel Dudes sells some of the products mentioned in this article. Our recommendations are based on hands-on testing and customer feedback.

Let's walk through the decision process the right way — the same way TDD's technical team approaches every customer inquiry.

1. Confirm your exact engine and model year. Not just "6.7 Cummins" — but 2013 or 2018? Those are different emissions configurations requiring different kits. Pull your VIN and verify. The difference between a 2012 and 2013 Ram is the addition of SCR/DEF to the emissions stack.
2. Verify your intended use and legal situation. EGR delete kits are for off-road and competition use only. Understand that operating a deleted truck on public roads violates 42 U.S.C. § 7522(a)(3) and potentially your state's own tampering statutes ^[7]. Know your situation before you order.
3. Select a platform-specific kit — not a universal fit. Your block-off plates need to match OEM bolt patterns exactly. Coolant reroute fittings need to match your engine's cooling circuit layout. A kit designed for your specific year range eliminates guesswork.
4. Verify the kit includes a coolant reroute solution. If the product listing doesn't mention coolant reroute hardware for your application — and your engine routes coolant through the EGR cooler — either the kit is incomplete or the seller doesn't know their product. Ask directly.
5. Pair the hardware with a matched delete tune. Identify which tuner platform works with your truck (EFI Live for most Cummins and older Duramax, EZ LYNK for broader coverage, RaceMe Ultra for Cummins 2007.5–current). The tune and hardware must be from a source that has validated them together.
6. Confirm support availability. Installation questions come up. A supplier who disappears after the sale isn't worth the discount.

One alternative worth mentioning for owners who need to stay emissions-compliant: upgraded EGR coolers. Some shops offer heavy-duty replacement EGR coolers designed with improved flow geometry and more robust core materials compared to OEM units. These keep your emissions system intact while addressing the durability weakness that drives most owners toward deletes in the first place. Not the path for every truck, but a legitimate option for street-driven rigs that can't be modified.
