The Diesel Particulate Filter (DPF) and How To Delete It

The DPF became mandatory on all on-road diesel trucks after the EPA 2007 regulations kicked in ^[1]. Your exhaust gases pass through a cordierite or silicon carbide ceramic monolith — picture a thick honeycomb structure with porous walls coated in precious metals ^[3]. These walls have microscopic channels with cell densities ranging from 100-300 cells per square inch and wall thickness between 10-20 microns ^[1][3].

As exhaust flows through, soot particles get physically trapped while clean gas passes through. The problem? Soot builds up fast. A clean DPF adds 1-5 kPa of backpressure — manageable for your engine. But when clogged, that spikes past 10 kPa, choking power output by 10-20 HP and tanking fuel economy by 5-10% .

That's where regeneration comes in. Your ECM monitors differential pressure sensors and soot load. When the filter hits around 45% capacity, it triggers active regeneration . The ECM dumps extra fuel into the exhaust stream or uses a dedicated burner to spike temps to 550-600°F, incinerating soot into fine ash ^[2]. If you're highway cruising and exhaust temps naturally stay high, passive regeneration happens automatically without driver input — typically every 400-800 kilometers under ideal conditions ^[2].

DPF System Types: Additive vs. Non-Additive

The ash that remains after regeneration doesn't burn — it's permanent. That's why DPFs need professional cleaning or replacement every 100,000-200,000 miles, depending on duty cycle . Use the wrong oil or run biodiesel blends, and you'll cut that lifespan in half.

Your truck came from the factory with the DPF because it had to — not because it makes your engine better. The EPA mandated that all on-road diesel vehicles manufactured after 2007 meet strict particulate matter limits . Euro 5 regulations followed suit in 2009 for European markets ^[3]. Manufacturers like Cummins, Powerstroke, and Duramax had no choice but to bolt on these systems.

The DPF works alongside other exhaust components: the DEF (Diesel Exhaust Fluid) system, the EGR (Exhaust Gas Recirculation) valve, and the DOC (Diesel Oxidation Catalyst). All these parts have sensors feeding data to your ECM. Miss one sensor reading, and your dash lights up like a Christmas tree.

Here's what kills most DPF systems: short-trip driving and stop-and-go duty cycles. If you're running errands around town or doing job site shuttles, your exhaust never gets hot enough for passive regeneration. The ECM forces active regens every 200-300 miles, dumping raw fuel into the exhaust just to hit 550-600°F . That's fuel you're burning just to clean a filter — not to move the truck.

Over time, ash from burnt soot and engine oil additives fills the filter permanently. Even with perfect maintenance, the DPF's capacity drops 20-50% . Factor in sensor failures (differential pressure sensors are notorious), failed regeneration cycles that superheat and crack the ceramic core, and contamination from wrong oil or fuel additives — and you're looking at a $3,000-$6,000 replacement bill .

Worse? If the DPF clogs completely, your ECM throws the truck into derate mode (also called limp mode), electronically limiting power output. Your 400 HP Cummins suddenly feels like a golf cart. The dash screams "SEE DEALER" — and that dealer visit isn't cheap.

Problem #1: Clogging and Ash Overload
Soot and ash buildup is the #1 killer. If you're running short trips or using high-ash oil (anything not CJ-4 or CK-4 rated), the DPF fills faster than it can regenerate . Symptoms include reduced fuel economy (10-20% drop), black smoke on acceleration, and the check engine light with codes P2459 (regen frequency) or P2463 (DPF restriction) ^[3]. A clogged DPF creates backpressure that chokes your turbo, overheats the EGR system, and can crack exhaust manifolds.

Problem #2: Failed Regeneration Cycles
Active regen needs sustained speeds above 50 mph for 20-30 minutes . Interrupt it — shut the truck off mid-cycle, hit stop-and-go traffic — and the soot doesn't fully burn. Partially burned soot bakes onto the filter walls, hardening into deposits that won't oxidize even at 650°F . Eventually, the ECM tries to force temps even higher, risking thermal shock that cracks the ceramic monolith. Replacement cost? $2,500-$6,000 for the OEM part alone .

Problem #3: Sensor and ECU Failures
Differential pressure sensors measure backpressure across the DPF. When these fail (common on trucks past 150,000 miles), the ECM misreads soot load and either triggers unnecessary regens or misses critical ones. Temperature sensors pre- and post-DPF also fail, throwing P2463 codes. The ECM responds by cutting power output to protect the engine — your truck enters derate mode, limiting RPM and torque .

Truck-Specific Issues:

• Ram Cummins 6.7L (2007-2024): Grid heater proximity to DPF causes uneven heating, leading to hotspots and cracking ^[4].
• Ford Powerstroke 6.7L (2011-2024): Integrated DPF/SCR units fail as a single assembly — you can't replace just the filter .
• Chevy Duramax 6.6L LML/L5P (2011-2024): DEF system failures cascade into DPF issues because the SCR catalyst is upstream; contaminated DEF crystallizes and blocks flow .

Bottom line: DPFs are wear items, not lifetime components. Even with perfect maintenance (low-SAPS oil, highway driving, forced regens every 150,000 miles), you're looking at cleaning or replacement before 200,000 miles .

Here's what actually happens when you pull the DPF without tuning: Your ECM constantly monitors differential pressure sensors (two of them — pre-DPF and post-DPF), exhaust temperature sensors, and soot load algorithms. The second those sensors go offline, the ECM throws fault codes and forces the truck into limp mode . Power output drops to 30-40% of normal. Your dash displays "SEE DEALER" or a wrench icon. The truck is drivable, but you won't hit highway speeds or pull a load.

That's where delete tuning comes in. A custom ECM tune rewrites the factory programming to:

1. Disable regeneration logic — no more active or passive regen cycles burning fuel.
2. Turn off DPF-related diagnostic trouble codes (DTCs) — P2459, P2463, and sensor circuit codes vanish.
3. Remove derate/limp mode triggers tied to missing DPF sensors.
4. Optimize fuel maps for unrestricted exhaust flow, often adding 50-150 HP and 100-300 lb-ft torque .

The Two-Part Process:

Step 1: Hardware Removal
You'll cut out the DPF housing (typically a 6-12" stainless canister) and replace it with a straight pipe or high-flow delete pipe. Quality kits use 4-5" mandrel-bent stainless steel tubing with provisions for O2 sensor bungs (you'll need those for tuning compatibility). You'll also remove or plug:

• Differential pressure sensor lines (2x)
• Exhaust temperature sensors (pre/post DPF)
• EGR components if doing a full emissions delete (recommended for max gains)

Step 2: ECM Reprogramming
You need a tuner device that can flash your ECM. Popular options for Cummins, Powerstroke, and Duramax trucks include EFI Live AutoCal V3, RaceMe Ultra, and EZ Lynk Auto Agent. These devices load custom delete tunes that completely eliminate DPF/DEF/EGR functions from your ECM .

Critical: Use a tuner with proven delete support. A bad tune can cause over-fueling, smoke, or even engine damage. The Diesel Dudes only recommends tunes from established companies with track records on your specific engine platform.

Delete Tuning Hardware Options

Once tuned, your truck runs like the DPF never existed. No codes. No limp mode. No regeneration interruptions during heavy pulls or towing runs.

Benefit #1: Eliminate Expensive Repair Costs
The average DPF replacement runs $2,500-$6,000 for parts alone . Sensor failures add another $500-$1,500. Over a truck's lifetime (200,000-500,000 miles), you're looking at multiple DPF cleanings at $800-$1,500 each, plus inevitable sensor replacements. Delete the system once, and those costs vanish. The upfront investment in a delete kit ($300-$800) and tuner ($1,000-$1,500) pays for itself by avoiding a single DPF replacement.

Benefit #2: Improved Engine Longevity

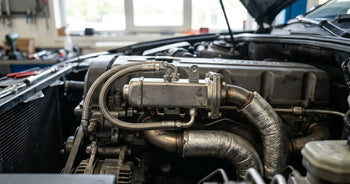

The EGR system (which works with the DPF) recirculates exhaust gases back into the intake manifold. This means soot, carbon, and particulates coat your intake valves, pistons, and cylinder walls . Over 100,000+ miles, this buildup causes premature wear, stuck rings, and oil contamination. Deleting the DPF — especially when paired with an EGR delete kit — stops exhaust from recirculating. Your engine breathes clean air, oil stays cleaner longer, and internal components last 20-30% longer.

Benefit #3: Maximum Exhaust Flow and Power Gains
A factory DPF is a restriction by design. The ceramic honeycomb structure has thousands of tiny channels — great for trapping soot, terrible for airflow . Backpressure in a clogged DPF can exceed 10 kPa, robbing 10-20 HP at the wheels . Replace it with a 4-5" straight pipe, and backpressure drops to under 2 kPa. Exhaust gases evacuate faster, turbo spools quicker, and you unlock horsepower trapped by the factory setup.

Typical gains with a full delete (DPF + EGR + custom tune):

• Ram Cummins 6.7L: +75-120 HP, +200-350 lb-ft torque
• Ford Powerstroke 6.7L: +50-100 HP, +150-250 lb-ft torque
• Chevy Duramax 6.6L LML/L5P: +80-140 HP, +180-300 lb-ft torque

Benefit #4: Better Fuel Economy
No more regeneration cycles dumping raw diesel into the exhaust every 200-700 miles . Active regen can burn an extra 1-2 gallons of fuel per cycle. If you're doing 3-4 regens per month (common in city driving), that's 40-100 gallons per year wasted just to clean a filter. Delete the DPF, and that fuel goes toward moving the truck. Owners report 5-15% MPG improvements — on a truck averaging 15 MPG, that's 1-2 extra miles per gallon .

Benefit #5: Lower Exhaust Gas Temperatures (EGTs)
Backpressure traps heat in the exhaust system. A restricted DPF can push EGTs to 1,200-1,400°F under heavy load . Delete the filter, and temps drop 100-200°F. Cooler EGTs mean less thermal stress on turbos, exhaust manifolds, and head gaskets — critical for trucks used in towing or high-altitude driving.

Here's what separates a quality delete kit from a hack job: fitment, materials, and completeness. You want a kit that bolts up to factory mounting points without cutting or welding (unless you're custom-building). The Diesel Dudes kits are designed specifically for your truck's year, make, and model — whether it's a 2013-2018 Ram Cummins 6.7L, 2017-2019 Ford Powerstroke 6.7L, or 2011-2015 Duramax LML.

Core Components:

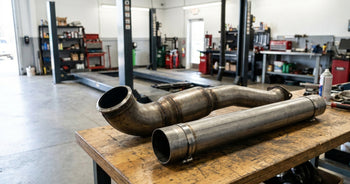

1. DPF Delete Pipe: 4-5" diameter mandrel-bent stainless steel or aluminized steel pipe. Replaces the entire DPF canister section. Includes provisions for O2 sensor bungs (critical for post-cat monitoring on some tunes). Example: DPF & CAT Delete Pipe | Dodge Ram 6.7L Cummins 2013-2018.
2. Sensor Block-Off Plates: CNC-machined aluminum or stainless plates that seal the holes where differential pressure sensor lines connected. Prevents exhaust leaks and keeps the bay clean.
3. EGR Delete Components: Intake manifold block-off plate, up-pipe or coolant line plugs (depending on truck), and EGR valve removal hardware. Deleting the EGR is essential for max performance because it stops exhaust recirculation. Example: EGR Delete | Dodge 6.7L Cummins Diesel 2010-2024.
4. Gaskets and Hardware: High-temp exhaust gaskets, stainless bolts, and clamps rated for 1,000°F+. Cheap kits skimp here — you'll end up with exhaust leaks within 5,000 miles.

Full Bundle Examples:

• Ram Cummins 6.7 Full Delete Bundle | 2013-2018 — Includes DPF/CAT delete pipe, EGR delete, tuner options, all hardware.
• Ford 6.7 Powerstroke Full Delete Bundle | 2017-2019 — DPF delete, EGR components, downpipe, CCV reroute.
• GM/Chevy Duramax 6.6 LML Full Delete Bundle | 2011-2016 — DPF/CAT pipe, EGR delete, up-pipe, tuner-ready.

Pair these with a delete tuner like the EZ Lynk or EFI Live, and you've got everything needed to go from factory-restricted to wide-open performance in a weekend install.

Let's break down the numbers by platform — these are real-world dyno-proven gains from The Diesel Dudes customer trucks running full delete setups:

Horsepower and Torque Gains by Truck Platform

Why The Variance?
DPF delete alone removes the biggest restriction (the filter itself), dropping backpressure from 8-12 kPa to under 2 kPa . That frees up 20-50 HP depending on how clogged your factory DPF was. But the real gains come from the ECM tune. Factory tunes run conservative timing, boost limits, and fuel maps to protect emissions equipment. A delete tune removes those limiters and optimizes for power:

• Increased boost pressure: 30-35 PSI stock → 40-50 PSI tuned
• Advanced injection timing: Earlier injection = more complete combustion
• Higher fuel rail pressure: 26,000 PSI stock → 29,000+ PSI tuned (Cummins)
• Eliminated torque management: No more ECM-imposed power cuts during shifts

Stack an EGR delete on top (stopping hot exhaust from recirculating into the intake), and you're feeding the engine cooler, denser air. That's worth another 15-30 HP just from intake temp drops .

Complementary Mods For Maximum Gains:
Want to push past 150 HP over stock? Add these to your delete setup:

1. Cold Air Intake: S&B Cold Air Intake systems increase airflow 30-50% over factory — worth 10-20 HP.

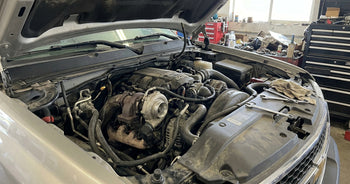

2. Turbo Upgrade: Larger compressor wheels and housings (63mm-68mm) support 600+ HP builds.
3. 5" Turbo-Back Exhaust: Full 5" exhaust from turbo to tip maximizes flow. Example: 5" Full Exhaust System | Ram 6.7L Cummins 2013-2018.
4. Lift Pump: Higher fuel volume prevents rail pressure drop under heavy throttle — critical for 500+ HP tunes.

The bottom line: A full delete (DPF + EGR + tune) is the single best bang-for-your-buck mod you can do. You'll spend $1,500-$2,500 total and see gains that would cost $8,000+ with turbo upgrades alone.

Here's the hard truth: The EPA doesn't mess around with emissions tampering. Section 203(a) of the Clean Air Act makes it illegal to remove, disable, or render inoperative any emissions control device on a vehicle used on public roads . That includes the DPF, EGR, DEF system — all of it. The law applies whether you're the shop doing the install or the truck owner driving with deleted emissions.

Enforcement Reality (2023-2026):
The EPA ramped up enforcement starting in 2020. Major settlements include:

• Cummins Inc.: $100M+ fine in 2023 for selling defeat devices and delete-capable ECM calibrations.
• Aftermarket Tuner Companies: Multiple shops hit with $500,000-$2M penalties for selling delete kits and tunes marketed for street use .
• Individual Truck Owners: Rare but increasing — roadside OBD inspections in California, Colorado, and Texas have resulted in $5,000-$10,000 fines for tampered trucks.

State-Level Complications:
Not all states enforce equally. Here's the breakdown:

Warranty Implications:
Your factory powertrain warranty (typically 5 years/100,000 miles) is void the moment you delete emissions. If a turbo fails or injectors go bad, the dealer will scan for tampering. They'll find the missing DPF sensors, deny the claim, and you're stuck with a $6,000-$15,000 repair bill. Some owners reinstall factory parts before dealer visits — risky and time-consuming.

The Legal Workaround:
DPF deletes are 100% legal for:

• Off-road vehicles: Trucks never driven on public roads (farm use, dedicated trail rigs).
• Competition vehicles: NHRA-registered drag trucks, sled-pull rigs, rally trucks.
• Export vehicles: Trucks shipped to countries without EPA jurisdiction.

If you're using your truck for these purposes, keep documentation. Bill of sale showing "off-road only" use, competition logs, or farm exemption papers can protect you during an audit.

The Diesel Dudes Position:
We sell delete kits and tunes for off-road and competition use only. It's your responsibility to understand local laws and use these products legally. We don't condone breaking federal regulations — but we also believe you should have the freedom to modify your truck for legitimate uses like pulling, racing, and farm work where emissions equipment causes reliability issues.

Tools and Materials Needed:

• Floor jack and 4x jack stands (rated for your truck's weight)
• Sawzall or exhaust pipe cutter
• Socket set (3/8" and 1/2" drive) with metric sockets (10mm-19mm)
• Breaker bar for seized exhaust bolts
• Penetrating oil (PB Blaster, Liquid Wrench)
• High-temp exhaust sealant (Permatex Copper or equivalent)
• Laptop or smartphone (for tuner flashing)
• Your delete tuner device (EZ Lynk, EFI Live, RaceMe, etc.)

Step-by-Step Installation:

Step 1: Disconnect Battery (Safety First)
Disconnect the negative terminal on your truck's battery. This prevents electrical shorts when unplugging sensors and ensures the ECM doesn't throw phantom codes during the install.

Step 2: Lift and Secure the Truck
Jack up the rear of the truck and support it on 4 jack stands. You need clearance to work under the chassis — aim for 24-30" of space. Chock the front wheels.

Step 3: Locate and Remove the DPF
The DPF sits between the turbo downpipe and the muffler. It's the large cylindrical canister (8-14" diameter, 12-18" long) with sensor lines running to it. On most trucks:

• Ram Cummins: Mid-chassis, passenger side, behind transmission crossmember.
• Ford Powerstroke: Driver side, integrated with SCR catalyst (you'll remove both as one unit).
• Duramax: Driver side, between frame rails.

Spray all exhaust bolts and clamps with penetrating oil. Let it soak 15-20 minutes. Unbolt the DPF from the upstream pipe (usually 3-4 bolts or a V-band clamp) and downstream pipe (similar setup). If bolts are seized, use a breaker bar or cut them with a grinder.

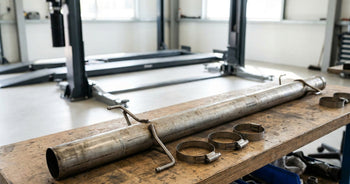

Step 4: Install the Delete Pipe
Slide your new DPF delete pipe into position. It should bolt directly to the factory mounting points. Apply high-temp sealant to gasket surfaces. Torque bolts to spec (typically 35-45 ft-lbs for exhaust flanges). Make sure the pipe has clearance from the driveshaft, frame rails, and brake lines — you don't want rattles or rubs.

Step 5: Remove/Plug Sensors
Disconnect the wiring harnesses for:

• Differential pressure sensor (usually on top of the DPF housing) — remove and install block-off plate.
• Pre- and post-DPF temperature sensors — some tunes require you to leave these plugged in to dummy resistor plugs (check your tuner instructions).

If doing a full EGR delete, you'll also block the EGR valve intake port and remove the EGR cooler. This adds 1-2 hours to the install.

Step 6: Flash the ECM with Delete Tuning
Reconnect the battery. Plug your tuner into the OBDII port (located under the dash, driver side). Follow the tuner's instructions to flash the delete tune. This process takes 10-30 minutes depending on the device. Do not interrupt power during the flash — a corrupted ECM requires dealer-level recovery.

Step 7: Clear Codes and Test Drive
Once tuned, clear any stored fault codes using the tuner. Start the truck and let it idle for 5 minutes. Check for exhaust leaks (listen for hissing, look for soot streaks). Take a test drive — accelerate hard, tow a load if possible. The truck should feel noticeably more responsive with no check engine light.

Pro Tips:

• Replace exhaust gaskets even if they look reusable — they're $5-$10 and prevent leaks.
• Use anti-seize on all exhaust bolts for future removal.
• If you're in a strict emissions state, keep the factory DPF stored in case you need to reinstall for resale or inspection.
