EGR Delete Kit M57: What BMW Diesel Owners Need to Know

BMW's M57 engine family covers a wide range of applications: the 3 Series (E46, E90 330d), 5 Series (E39, E60 525d/530d), 7 Series (E65 730d), and the E53 X5 3.0d. The US-market variants — the E90 335d and E70 X5 35d produced from roughly 2009–2013 — run a more complex emissions stack that includes both high-pressure and low-pressure EGR, a DPF, and an SCR system.

The M57 went through several revisions: the original M57 (1998–2003), the M57N/M57TU facelift, and the later M57N2 targeting Euro 4/5 standards. Each revision tightened emissions compliance — and added more EGR plumbing as a result.

Here's what the stock EGR (Exhaust Gas Recirculation) system does: it bleeds exhaust gas back into the intake charge to lower combustion temperatures and reduce NOx output. That exhaust gas carries soot and oil vapor with it. Over thousands of miles, that mixture deposits heavily on the intake manifold walls, intake ports, and the EGR valve itself.

The EGR cooler uses engine coolant to drop exhaust gas temperature before it re-enters the intake. That cooler is a known failure point — thermal cycling causes internal cracking, coolant leaks into the intake or exhaust side, and you get white smoke, coolant loss, and potential head gasket risk. The EGR valve itself can stick open (rough idle, heavy smoke) or stick closed (limp mode, DTCs).

According to kit documentation reviewed across multiple suppliers ^[1][5], the primary driver for M57 owners pursuing a delete is not peak power — it's eliminating a chronic, recurring failure mode that gets expensive fast on higher-mileage examples.

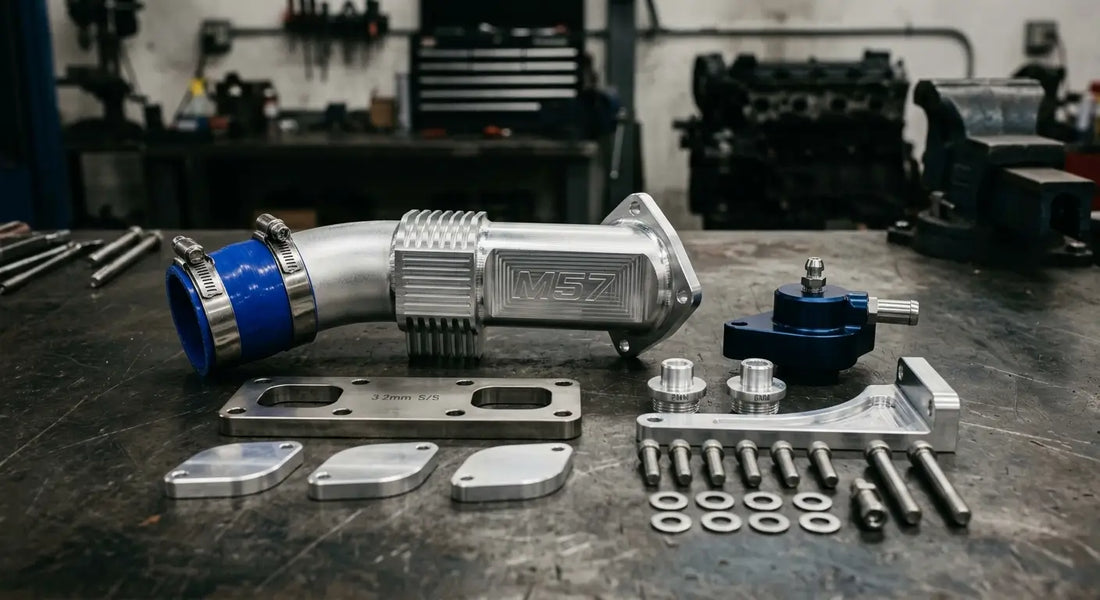

What's Included in a Typical M57 EGR Delete Kit

• Race pipe / EGR replacement pipe — CNC-machined from 6061 billet aluminum, connects the charge pipe or intercooler outlet directly to the intake manifold, completely bypassing the EGR valve. Machined from a single billet to eliminate weld failure points ^[2].
• Exhaust manifold block-off plate — An 8mm stainless steel blanking plate that seals the exhaust-side EGR feed port, preventing exhaust gas from entering the deleted circuit ^[10].
• EGR cooler caps or block-off plates — Used to cap the cooler's exhaust inlet and outlet when the cooler is retained but the valve is deleted, or removed entirely in a full delete.
• Coolant plugs with integrated bleeder screws — Aluminum plugs that close off the coolant lines feeding the EGR cooler. Bleeder screws allow air purging after removal without dropping the entire cooling system ^[5].
• Hardware pack — M6 bolts, clamps, grub screws to block boost reference ports as needed.

Some kits include a 54mm silicone hose connection point for custom intake fabrication — particularly useful in engine swap or dedicated race builds ^[7].

For US-spec M57 engines in the 335d and X5 35d, a full kit will also include:

• Turbo-side low-pressure EGR block-off
• DPF-side LP-EGR flange block-off plate
• Additional coolant line plugs for the low-pressure cooler circuit ^[4]

Critical note: Installing the hardware without corresponding ECU tuning or coding will trigger check-engine lights, DTC codes, and potentially force the vehicle into limp mode. The mechanical delete and the software changes must be treated as a single job.

The M57 family powered a large range of BMW models across nearly 15 years. Fitment is engine-code specific — an M57N kit does not automatically work on an M57N2 or a US-spec M57. The table below covers the primary fitment combinations documented across M57 EGR delete kit manufacturers ^[3][6].

BMW Chassis	Model / Variant	Engine Code	EGR Kit Type Needed
E38	730d	M57 (original)	HP EGR delete (valve + cooler)
E39	525d / 530d	M57 / M57N	HP EGR delete (valve + cooler)
E46	330d	M57 / M57N	HP EGR delete (valve + cooler)
E53	X5 3.0d	M57N	HP EGR delete (valve + cooler)
E60 / E61	525d / 530d	M57N / M57N2	HP EGR delete; confirm variant
E65	730d	M57N / M57N2	HP EGR delete; confirm variant
E90	335d (US-spec)	M57 (US)	HP + LP EGR delete (both loops)
E70	X5 35d (US-spec, 2009–2013)	M57 (US)	HP + LP EGR delete (both loops)

The US-spec M57 in the E90 335d and E70 X5 35d is the most complex fitment. It runs separate high-pressure and low-pressure EGR loops, and the LP loop connects directly to the DPF, meaning any hardware change has downstream effects on regen strategy. Both loops should be addressed together — doing half the job creates more problems than it solves ^[4].

Here's the deal — kit manufacturers market EGR deletes with a list of claimed benefits. Let's sort the real from the overstated.

Lower intake air temperatures: With no hot exhaust gas recirculating into the charge, intake temps drop. This is real physics. The magnitude on a stock-power M57 is modest, but it becomes more meaningful when paired with tuning that raises boost and fueling targets.

Reduced carbon buildup: This is the biggest legitimate benefit. EGR is the primary source of soot entering the intake manifold. On high-mileage M57 engines, intake manifold runners can choke down significantly — reducing airflow, worsening idle quality, and dropping fuel economy. Eliminating EGR stops new deposits from forming. It doesn't clean what's already there, but it ends the cycle ^[5].

Eliminated cooler failure modes: Cracked EGR coolers cause coolant intrusion into the exhaust or intake, white smoke, and coolant level drops that can cascade into overheating events. Removing the cooler entirely eliminates that failure mode permanently ^[6].

No more stuck EGR valve: A stuck-open EGR valve on the M57 typically produces a rough, lumpy idle at operating temperature, excessive smoke, and poor part-throttle response. A stuck-closed valve can trigger limp mode. Deleting the valve removes both failure scenarios.

Perceived throttle response improvement: Most owners who report improved response after an EGR delete are experiencing the combined effect of cleaner intake flow and a supporting ECU tune — not the delete hardware alone. Don't expect dramatic power numbers from block-off plates by themselves.

Realistic expectation: On a healthy M57 with functioning EGR, peak power gains from the delete alone are modest. The majority of any performance improvement comes from the ECU calibration that has to accompany the hardware work. The delete is primarily a reliability and maintenance move — especially on engines north of 100,000 miles.

This is where The Diesel Dudes are going to give it to you straight, no filter.

The U.S. Clean Air Act, specifically 42 U.S.C. § 7522(a)(3), prohibits two things relevant here: (1) removing or rendering inoperative any emissions control device installed on a vehicle in compliance with regulations, and (2) manufacturing, selling, or installing any part designed to bypass or defeat such a device on a road-going vehicle. EGR systems are certified emissions controls. Physically deleting one on any vehicle you drive on public roads is federally illegal tampering — full stop.

The EPA has made aftermarket defeat devices a National Enforcement and Compliance Initiative. According to the EPA's own enforcement data ^[8], known sales of defeat devices for diesel trucks between 2009 and 2020 resulted in more than 570,000 tons of excess NOx and 5,000 tons of excess particulate matter over the lifetime of affected vehicles. That's why enforcement pressure has intensified — this isn't theoretical.

Individual penalties under the Clean Air Act can reach $5,000 per violation for vehicle owners, and substantially higher for manufacturers and sellers of defeat devices ^[8].

State-level rules layer on top of federal law. Any state running OBD-based emissions inspections will flag a vehicle with EGR-related DTCs or missing EGR readiness monitors. California's CARB regulations are stricter still — Cal. Health & Safety Code §§ 43000 et seq. prohibit tampering with certified emissions equipment regardless of federal enforcement posture.

The Diesel Dudes' position is simple: we don't condone emissions tampering on road-registered vehicles. Any discussion of EGR delete hardware in this article is presented strictly for educational purposes and for the benefit of owners building dedicated off-road, track, or competition vehicles that are never operated on public roads. You are responsible for knowing and following your local, state, and federal regulations ^[16].

Legal Notice: Removing or tampering with emissions equipment may violate the federal Clean Air Act and state emissions regulations. Penalties can include fines up to $5,000 for individuals. Check your local and state laws before modifying emissions equipment on any vehicle driven on public roads.

Understanding the two EGR loops on the US-spec M57 is critical before ordering any kit. Getting this wrong means incomplete results and potentially worse drivability than stock.

High-pressure EGR (all M57 variants): This is the primary circuit. Exhaust gas is pulled from the exhaust manifold, passed through a coolant-fed EGR cooler, regulated by the EGR valve, and injected into the intake manifold. The high-pressure EGR delete kit addresses this circuit with a race pipe replacing the valve and a block-off plate sealing the exhaust manifold port.

Low-pressure EGR (US M57 in E90 335d and E70 X5 35d only): Post-DPF exhaust gas is routed through a separate LP EGR cooler, regulated by an LP EGR valve, and fed back into the intake side of the turbocharger inlet. This circuit is deeply integrated with DPF regen strategy and NOx sensor feedback. The LP EGR delete kit for the US X5 35d includes a turbo-side block-off, a DPF-side flange block-off plate, and coolant line plugs for the LP cooler ^[4].

Kit configuration options:

• Valve-only delete (cooler retained): The EGR valve is replaced with a race pipe. The cooler and coolant lines stay in place with the exhaust inlet capped. Simpler install, less coolant system disruption — but the cooler remains as a potential future failure point under thermal cycling.
• Full high-pressure delete (valve + cooler removed): Valve, cooler, and exhaust-to-EGR pipe are all removed. Coolant plugs with bleeder screws close off the coolant circuit. Cleaner result, more space under the hood, zero cooler failure risk going forward ^[2].
• Combined HP + LP delete (US M57): Both EGR circuits addressed simultaneously. This is the only logical approach for the 335d and X5 35d since ECU coding is required regardless, and doing both jobs at once avoids a second tear-down.

Macote's kit documentation notes an approximately 20-minute install time for the basic high-pressure valve delete on Euro-spec M57 variants ^[3] — though a full cooler-out job with coolant system work will take considerably longer, especially on the US-spec engines.

Block-off plates and race pipes are just metal until the ECU knows to stop expecting EGR flow. Here's what happens if you skip the tune:

The M57 ECU continuously monitors EGR position feedback, flow rates, and associated sensors. Remove the valve, and the ECU immediately detects zero flow where it expects a calibrated amount. You'll pull DTCs related to EGR position, EGR differential pressure, and potentially EGR cooler temperature. On most M57 variants, this triggers a reduced-power mode or outright limp mode within a short drive cycle.

On US-spec M57 engines, the situation is more complex. The low-pressure EGR system is part of the NOx management strategy that also governs DPF regen intervals and SCR dosing logic. Removing the LP EGR without software changes disrupts that entire chain — potentially causing over-frequent DPF regens, incorrect SCR operation, and persistent fault codes across multiple systems.

Proper ECU work for an M57 EGR delete involves:

• Disabling EGR valve position monitoring and fault thresholds
• Disabling EGR flow demand from fueling and boost control maps
• Adjusting combustion calibration to account for the increased oxygen content in the intake charge
• On US M57: disabling LP EGR system monitoring and rebalancing DPF regen strategy

The M47/M57 family uses spring-loaded EGR valve actuators on earlier variants, while the US M57 and later M57N2 variants use electrically actuated valves — the coding approach differs between them, which is why engine-specific tuning knowledge matters. Working with a tuner who has documented M57 experience is essential ^[9].

The Diesel Dudes Technical Team recommends treating any EGR delete as a hardware-plus-software package. The hardware removes the physical components; the tune tells the ECU to stop looking for them and recalibrates the engine's operating strategy accordingly ^[16].

Disclosure: The Diesel Dudes sells some of the products mentioned in this article. Our recommendations are based on hands-on testing and customer feedback.

A balanced look at what you're signing up for — because any competent tech will tell you both sides.

Legal and inspection risk: As covered in the legal section, operating an EGR-deleted M57 on public roads violates 42 U.S.C. § 7522(a)(3). States with OBD-based inspections will flag missing EGR readiness monitors or active EGR-related DTCs. Even with a tune that suppresses codes, some states sample OBD readiness data in ways that detect tampering ^[15].

Environmental impact: EGR's primary function is NOx reduction. Removing it increases NOx output — a key contributor to ground-level ozone and smog. The EPA's enforcement data quantifies this: tampered diesel vehicles collectively generated over 570,000 tons of excess NOx between 2009 and 2020 ^[8]. That's not a hypothetical number.

Drivability issues from poor calibration: If the ECU tune accompanying the delete is not properly calibrated for the M57's specific variant and fueling maps, you can end up with surging at part throttle, excessive smoke under load, or abnormal EGT spikes. The hardware is only as good as the software behind it.

DPF interaction (US M57): On the 335d and X5 35d, the EGR system feeds data into DPF regen logic. A partial delete or poorly mapped tune can cause over-frequent active regens, which accelerates DPF loading and increases exhaust temperatures beyond the DPF substrate's design range.

Resale complications: A modified emissions system significantly narrows the buyer pool. Any knowledgeable buyer or BMW-specialist shop doing a pre-purchase inspection will identify the delete immediately. Returning to stock requires sourcing and reinstalling all deleted components — and flashing back to stock calibration.

Warranty and insurance implications: Any remaining powertrain warranty is voided the moment emissions equipment is removed. Some insurance carriers have exclusion language around vehicles modified in ways that violate federal law.

Not every M57 owner is building a track car. If your daily driver is throwing EGR codes or running rough, here are the legitimate alternatives worth evaluating before committing to a full delete.

OEM EGR valve and cooler replacement: BMW OEM EGR valves and coolers for most M57 variants are available through dealer networks and OEM-equivalent suppliers. On a Euro-spec 530d or X5 3.0d, this is often the cleanest path. The new components reset the failure clock and restore full emissions compliance. Cost varies — expect $300–$800 in parts depending on variant, plus labor.

Intake manifold and EGR cleaning: On engines where the EGR and valve are still functional but carbon buildup is the primary complaint, professional walnut shell blasting of the intake ports and manifold runners can restore airflow close to factory spec. Combined with a new EGR valve (if the old one is sticky), this addresses the symptom without touching emissions legality. Many BMW diesel specialists offer this as a scheduled service item.

Software-only EGR de-rating: Some tuners can reduce EGR flow demand within the ECU without physically removing any hardware. This reduces — but doesn't eliminate — EGR activity and slows carbon accumulation without triggering the fault codes associated with a physical delete. It's a middle-ground strategy that keeps all hardware in place and OBD monitors running. This approach is more commonly used on Euro-market vehicles where the regulatory framework differs from the US Clean Air Act, but some US tuners offer similar strategies.

Preventive maintenance schedule: If the EGR system is currently healthy, establishing a maintenance interval for EGR valve inspection and intake cleaning (every 50,000–75,000 miles is a commonly referenced range for high-soot diesel applications) can extend the system's functional life significantly without any modification.

For owners who are building a dedicated competition or off-road vehicle and want the full performance picture including EGR delete, the Diesel Dudes carry a comprehensive range of EGR delete kits and supporting tuning solutions for the most popular diesel platforms ^[16].
