Diesel Delete Kit Ford: Complete Buyer's Guide for Ford Powerstroke Owners

Let's break it down. Ford's emissions stack on the 6.7 Powerstroke (2011–present) consists of three major systems working together: the EGR (Exhaust Gas Recirculation), which routes exhaust gases back into the intake to lower combustion temperatures; the DPF (Diesel Particulate Filter), which captures soot before it exits the exhaust; and the DEF/SCR (Selective Catalytic Reduction) system, which injects Diesel Exhaust Fluid to chemically reduce NOx before the exhaust exits the tailpipe.

A partial delete kit addresses only one of these — common examples are EGR-only kits or DPF-only pipes. A full delete bundle addresses all three simultaneously with matched hardware and tuning.

The Diesel Dudes Ford 6.7 Powerstroke Full Delete Bundle ^[79] for 2023–2026 includes an EZ Lynk AutoAgent tuner with preloaded delete tunes, a 4-inch rust-resistant DPF/CAT delete pipe, a required downpipe, and a complete EGR delete kit with optional muffler upgrade. Every component is Ford-specific — not a generic pipe with an adapter. According to The Diesel Dudes product pages ^[8], the pass-through EGR delete design for 2011–2025 maintains proper coolant routing without cutting or welding.

One critical point: without a properly written delete tune flashed into the ECM, the truck will immediately set fault codes when EGR flow drops to zero. The ECM monitors EGR differential pressure and temperature in a closed-loop strategy. A quality tune disables those monitors and recalibrates fueling, boost targets, and transmission shift points to account for the new exhaust flow characteristics. Piecemeal kits that skip the tune — or bundle a generic tune not calibrated to your model year — are one of the most common causes of post-delete drivability complaints.

Legal Notice: Removing or tampering with emissions equipment may violate the federal Clean Air Act and state emissions regulations. Penalties can include fines up to $5,000 for individuals. Check your local and state laws before modifying emissions equipment on any vehicle driven on public roads.

Here's the thing — each of these three systems has a specific failure profile that Ford 6.7 Powerstroke owners run into as mileage climbs past 100,000 miles.

DPF (Diesel Particulate Filter): The DPF captures soot from combustion and periodically burns it off via active regeneration — a process where the ECM injects extra fuel to raise exhaust temps above 1,100°F. Under light-load, short-trip driving, regens become more frequent and more fuel-intensive. A clogged DPF increases exhaust backpressure, which robs the turbocharger of efficiency and raises exhaust gas temperatures (EGTs). Backpressure exceeding 15 PSI at high load is considered restrictive; OEM DPF assemblies on a high-mileage 6.7 Powerstroke can push that number significantly higher.

DEF/SCR System: The SCR (Selective Catalytic Reduction) system uses DEF injected into the exhaust to reduce NOx emissions, as required under EPA 40 CFR Part 86 standards implemented post-2010 ^[2]. The system relies on a DEF pump, injector, NOx sensors, and heater elements. In cold climates, DEF freezes at 12°F and the heater circuits are a known failure point. A failed DEF injector or pump will trigger a progressive derate — your truck will first limit to 65 MPH, then 45 MPH, then 5 MPH if not addressed. For a work truck mid-haul, that's a serious problem.

EGR (Exhaust Gas Recirculation): The 6.7 Powerstroke runs both a high-pressure and low-pressure EGR circuit. Hot, soot-laden exhaust gas routed back through the intake manifold deposits carbon on the intake valves and intercooler over time. EGR cooler failures — where coolant leaks into the exhaust or vice versa — are a documented failure mode on this platform. According to industry analysis ^[5], EGR-related carbon buildup is one of the primary causes of elevated intake temperatures and reduced combustion efficiency on the 6.7 Powerstroke as mileage accumulates.

The combined cost of replacing a failed DPF, DEF pump assembly, and EGR cooler at a dealership can run $4,000–$8,000 depending on labor rates and model year — all out-of-pocket once the truck is out of factory warranty coverage.

No gray area here. Under 42 U.S.C. § 7522(a)(3) of the Clean Air Act, it is illegal for any person to remove or render inoperative any emission control device on a motor vehicle that is used on public roads. This covers DPF, EGR, DEF/SCR, and DOC components. The EPA further defines prohibited acts and defeat devices under 40 CFR Part 86 and 40 CFR § 1068.101(b)(1).

As reported by Land Line Media ^[1], recent DOJ activity around diesel delete kits has reinforced — not relaxed — the federal position that emissions defeat devices for on-road vehicles remain illegal. The DOJ reprieve referenced in some coverage applied to specific enforcement timelines, not to legalization of on-road deletes.

Penalties under 42 U.S.C. § 7524 can reach $5,000 per violation for individuals and significantly more for commercial installers and distributors. The EPA has pursued enforcement actions against shops and kit manufacturers, resulting in multi-million dollar settlements.

State-level enforcement adds another layer. California, New York, Colorado, and a growing number of states require periodic emissions inspections. A deleted truck will fail any OBD-II scan that checks for active emissions monitors — the missing DPF and EGR will generate incomplete readiness flags or active DTCs that any emissions tester will catch.

The Diesel Dudes is transparent about this: every Ford diesel delete kit we sell is intended for off-road, competition, or closed-course use only. Owners running deleted trucks on private property, at the track, or in off-road competition environments operate under a completely different framework than street-driven vehicles. Confirm your state and local regulations before making any purchase decision.

Legal Notice: Removing or tampering with emissions equipment may violate the federal Clean Air Act and state emissions regulations. Penalties can include fines up to $5,000 for individuals. Check your local and state laws before modifying emissions equipment on any vehicle driven on public roads.

Here's what the data actually shows for off-road-use deleted 6.7 Powerstrokes.

Performance: Removing DPF backpressure directly benefits turbocharger efficiency. The OEM DPF assembly on a 6.7 Powerstroke adds significant restriction to exhaust flow. When that restriction is eliminated and the ECM is re-tuned with adjusted boost targets and fueling maps, power gains of 30–100 HP and proportional torque increases are consistently reported across documented dyno pulls. The stock 2023 6.7 Powerstroke produces 500 HP and 1,200 LB-FT at the crank — a well-executed delete tune can push those numbers meaningfully higher in off-road configurations.

Fuel Economy: Active DPF regens inject post-combustion fuel specifically to burn off trapped soot — fuel that produces zero useful work. Eliminating regens removes this parasitic fuel consumption. Owners running deleted trucks in towing and highway applications commonly report 3–5 MPG improvements under normal driving conditions, with the gains most pronounced during heavy towing where regen events are most frequent.

Reliability: This is the argument that resonates most with work-truck owners. Removing the DEF pump, SCR injector, NOx sensors, EGR cooler, EGR valve, and DPF assembly eliminates the most failure-prone components on the entire truck. No more mid-winter DEF heater failures triggering derates. No more EGR cooler corrosion pushing coolant contamination. No more DPF pressure sensor failures generating false regens.

Cost Comparison: A full delete bundle from The Diesel Dudes runs from $1,734 ^[77] for 2017–2019 trucks up to higher pricing for the latest model years. Compare that to a single dealership DPF replacement ($2,500–$4,000 for parts and labor) or an EGR cooler and valve replacement ($1,500–$2,500) — both of which are one-time fixes that leave all the other failure-prone components still in place.

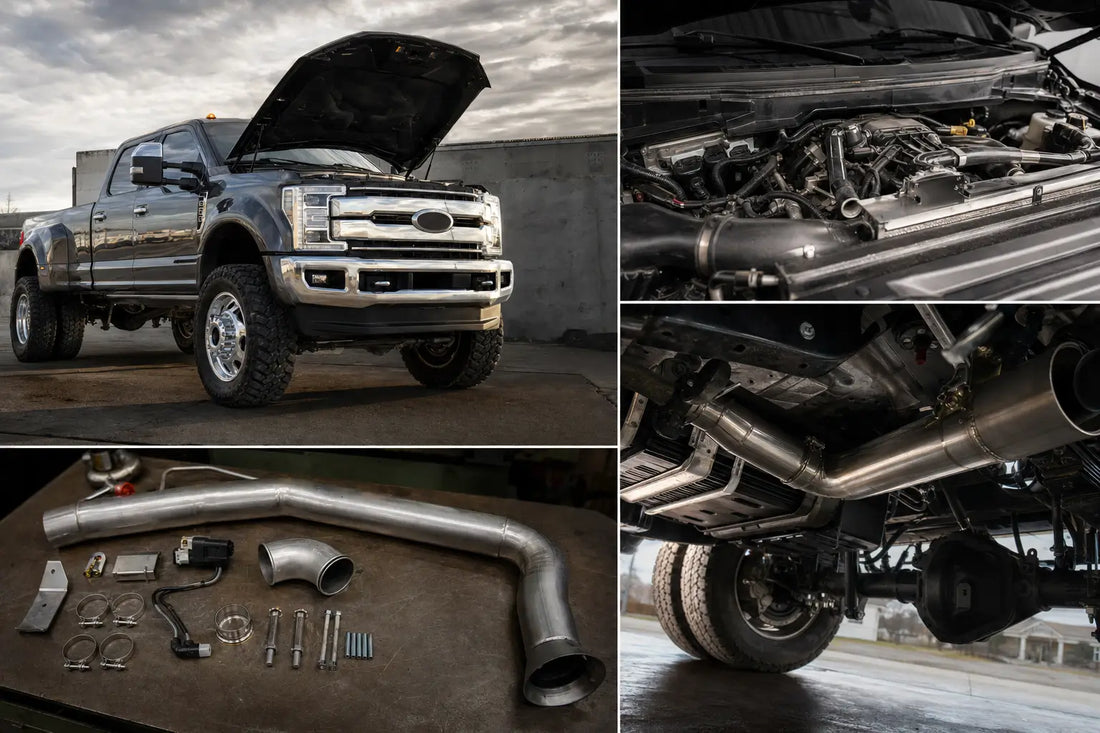

What's Included in the Ford 6.7 Powerstroke Full Delete Bundle

• EZ Lynk AutoAgent Tuner — Connects to the OBD-II port under the driver-side dash; preloaded with Ford-specific delete tunes that disable DPF, DEF/SCR, and EGR diagnostic monitors and recalibrate fueling and boost targets. The EZ LYNK Lifetime Support Pack ^[68] provides ongoing tune updates as Ford releases new calibrations.
• 4-Inch DPF/CAT Delete Pipe — Rust-resistant aluminized or stainless steel pipe that replaces the OEM DPF and DOC/CAT assembly. Year-specific fitment: the 2011–2016 pipe ^[39] differs from the 2017–2019 pipe ^[40], which differs again from the 2020–2022 and 2023+ versions ^[41].
• Downpipe — Required on 2020–2026 6.7 Powerstroke configurations ^[31]; connects the turbo outlet to the delete pipe and is sold as part of the complete bundle.
• EGR Delete Kit — Includes billet aluminum block-off plates for both the high-pressure and low-pressure EGR circuits, coolant bypass hardware to maintain proper cooling circuit flow without the EGR cooler in the loop, and all required gaskets, bolts, and fittings. The pass-through design ^[8] for 2011–2025 does not require cutting or rerouting coolant lines.
• EGR Delete Kit 2020–2025 — Year-specific kit ^[50] addresses the updated dual-circuit EGR architecture on the third-generation 6.7 Powerstroke.
• Optional Muffler Upgrade — Select bundles include muffler option for a deeper exhaust tone while reducing drone on the highway.
• Hardware Pack — V-band clamps, exhaust hangers, wiring plug caps for disconnected sensor harnesses, and installation hardware. The Shibby Engineering Tuner Harness Plug Kit ^[114] is a recommended add-on that caps sensor connectors cleanly without leaving bare wiring exposed.

The tune is non-negotiable. A delete pipe installed without a matching tune will immediately trigger DTC P0401 (EGR insufficient flow) and DPF pressure sensor codes, potentially putting the truck into limp mode within the first drive cycle.

Disclosure: The Diesel Dudes sells the products mentioned in this article. Our recommendations are based on hands-on testing and customer feedback.

Fitment matters more on Ford delete kits than almost any other platform. The 6.7 Powerstroke went through three significant hardware revisions (2011–2016, 2017–2019, 2020+), and the exhaust routing, downpipe configuration, and EGR circuit layout changed with each generation. Using the wrong year's pipe or EGR kit is the number-one install mistake we see.

Year Range	Engine	Emissions Stack	Full Delete Bundle
2003–2007	6.0L Powerstroke	EGR only (no DPF/DEF)	6.0L Full Delete Bundle
2008–2010	6.4L Powerstroke	DPF + EGR (no SCR/DEF)	6.4L Full Delete Bundle
2011–2012	6.7L Powerstroke (Gen 1)	DPF + SCR/DEF + EGR	2011–2012 Full Delete Bundle [74]
2013–2014	6.7L Powerstroke (Gen 1)	DPF + SCR/DEF + EGR	2013–2014 Full Delete Bundle [75]
2015–2016	6.7L Powerstroke (Gen 2)	DPF + SCR/DEF + EGR	2015–2016 Full Delete Bundle [76]
2017–2019	6.7L Powerstroke (Gen 2)	DPF + SCR/DEF + dual EGR	2017–2019 Full Delete Bundle [77]
2020–2022	6.7L Powerstroke (Gen 3)	DPF + SCR/DEF + dual EGR + revised downpipe	2020–2022 Full Delete Bundle [78]
2023–2026	6.7L Powerstroke (Gen 3+)	DPF + SCR/DEF + dual EGR + revised downpipe	2023–2026 Full Delete Bundle [79]

The 2023–2026 bundle is the newest addition to The Diesel Dudes Ford lineup. Many generic parts sites still don't carry comprehensive kits for this generation — the revised downpipe routing and updated EGR architecture require year-specific components ^[31]. The EZ Lynk software for 2023–2025 ^[72] is preloaded and ready to flash out of the box.

Without the right tuner writing the right delete calibration into your PCM, nothing else in the bundle matters. Here's how the three main platforms stack up for Ford Powerstroke applications.

EZ Lynk AutoAgent 3 (2008–2022): The EZ Lynk AutoAgent ^[63] is the premium option for 2008–2022 6.7 Powerstroke and 6.4 Powerstroke owners. It connects via the OBD-II port and communicates with The Diesel Dudes' tuning team through a cloud-based platform. The EZ LYNK Lifetime Support Pack ^[68] means your tune can be updated remotely as Ford releases new ECM calibrations — no need to ship hardware back. The platform supports multiple power levels with the ability to switch between tunes without returning to the shop.

EZ Lynk Software for 2023–2025 6.7L: The newest generation 6.7 Powerstroke requires a different software package ^[72] due to the updated ECM architecture. This platform is preloaded specifically for the Gen 3+ emissions system and works in conjunction with the year-specific hardware in the 2023–2026 full delete bundle ^[79].

BullyDog BDX (2011–2019): The BullyDog BDX ^[26] is a proven handheld tuner with a color touchscreen that plugs directly into the OBD-II port. It's rated at 353 customer reviews and is a popular choice for owners who want a straightforward plug-and-tune interface with onboard monitoring capability. Best suited for 2011–2019 6.7 Powerstroke applications.

H&S Mini Maxx V1 (2003–2014): The H&S Mini Maxx ^[92] covers older-generation Ford Powerstrokes from 2003–2014 and remains one of the most field-proven delete tuners available for those platforms. The handheld interface plugs into the OBD-II port and supports multiple power levels.

Key rule: never mix tuner platforms across model years. The 2023+ trucks use a different CAN bus architecture and ECM communication protocol than 2019 and older trucks. Attempting to flash a 2019-era tune file onto a 2023 PCM will not work and may require dealer intervention to recover the ECM.

Here's the honest install overview so you know what you're getting into before the kit shows up at your door.

Phase 1 — Flash the Delete Tune First. Connect your EZ Lynk or BDX tuner to the OBD-II port. Key the ignition to RUN (not Start). Select the preloaded delete file from the tuner menu. The flash process takes 10–20 minutes and rewrites the PCM to disable all emissions-related diagnostic monitors. Do this before touching any hardware — if the truck won't start after the tune flash (rare but possible), you want to know before the exhaust is already off the truck.

Phase 2 — EGR Delete. Drain the coolant completely before touching the EGR system. Remove the EGR cooler and EGR valve from both the high-pressure and low-pressure circuits. Install the billet block-off plates to the OEM flange locations. Route coolant bypass fittings to maintain cooling circuit flow. Refill with fresh coolant and bleed the system. The pass-through EGR delete design ^[8] simplifies this step significantly compared to older kits that required coolant line rerouting.

Phase 3 — DPF/CAT Delete Pipe. On 2020–2026 trucks, remove the spare tire first — it blocks access to the exhaust sensor connectors on the DPF/SCR assembly. Disconnect and cap off NOx sensor, DPF pressure sensor differential lines, and SCR temperature sensor harnesses. Remove the full DPF/DOC/SCR assembly. Install the 4-inch delete pipe ^[14] using the supplied V-band clamps. On 2020–2026 applications, install the year-specific downpipe ^[31] before installing the delete pipe section. Check clearances against the frame and heat shield locations before final torque.

Time and Tools: Plan for 6–10 hours on a first install with basic hand tools, torque wrench, penetrating oil for seized exhaust hardware, and either a floor jack with stands or a lift. Shops with dedicated lifts typically complete the job in 4–6 hours.

Warranty Impact: Deleting emissions equipment voids Ford's powertrain warranty coverage on related systems. Keep your OEM parts if you anticipate returning the truck to stock — the DPF, EGR cooler, and sensors can be reinstalled.

Not every Ford diesel owner is running a modern 6.7 Powerstroke. Here's how delete kits break down for the older-generation platforms.

6.0L Powerstroke (2003–2007): The 6.0L Powerstroke has EGR but no DPF. The EGR delete kit ^[48] for this platform removes the EGR cooler and valve — the most notorious reliability liabilities on the 6.0L. EGR cooler failures on the 6.0L are a primary cause of head gasket failures on this engine due to coolant contamination of the combustion chamber. The 6.0L Full Delete Bundle ^[81] pairs the EGR delete with a delete tune and exhaust upgrade. The 4-inch exhaust DPF delete pipe ^[13] for the 6.0L replaces the restrictive OEM exhaust for improved flow, even though the 6.0L doesn't carry a DPF in the traditional sense.

6.4L Powerstroke (2008–2010): This platform introduced the factory DPF to Ford's Super Duty lineup — and with it, a regen system that became infamous for fuel dilution. Active regens on the 6.4L inject fuel into the exhaust stream to heat the DPF, and a portion of that fuel washes down the cylinder walls into the oil. Oil sample analysis on high-mileage 6.4L trucks frequently shows elevated fuel content as a direct result of regen events. The 6.4L Full Delete Bundle ^[73] from The Diesel Dudes addresses all of this: EGR delete kit ^[7], DPF/CAT delete pipe ^[38], and matching delete tune. A 5-inch exhaust option ^[23] is available for maximum flow on the 6.4L platform.

Both the 6.0L and 6.4L are popular platforms for off-road and competition use precisely because they're out of warranty, widely available, and well understood by the aftermarket. The delete kits for these platforms are mature, well-documented, and straightforward to install compared to the newer 6.7L generations. As noted by Jay Malone Ford's service analysis ^[3], the complexity of emissions systems has increased significantly with each generation — making the older-platform deletes comparatively simpler operations.
