EGR Delete Kit for LBZ Duramax: Full Guide for 2006-2007 6.6L Owners

The LBZ — GM's second-generation Duramax in the 'B' series — was produced from mid-2006 through 2007 model year. It displaced 6.6 liters, produced 360 hp and 650 lb-ft of torque from the factory, and represented a significant reliability improvement over the earlier LLY. The block, rods, and rotating assembly were built tough.

The EGR system, however, is a different story. Per 40 CFR Part 86, EPA Tier 2 emission standards mandated NOx reduction on all light-duty diesel vehicles of this era — which is why GM included the EGR. The system routes exhaust gas back into the intake charge to lower combustion temperatures and cut NOx output ^[1]. Under heat cycling, the LBZ EGR cooler — a coolant-fed heat exchanger — develops internal leaks. When that happens, coolant enters the intake manifold, contaminates the oil, and you're looking at a repair bill in the $1,500–$3,000 range before any labor markup. The EGR valve itself also carbons up progressively, restricting airflow and triggering fault codes. These are not edge-case failures — they are the normal lifespan of this system under hard use.

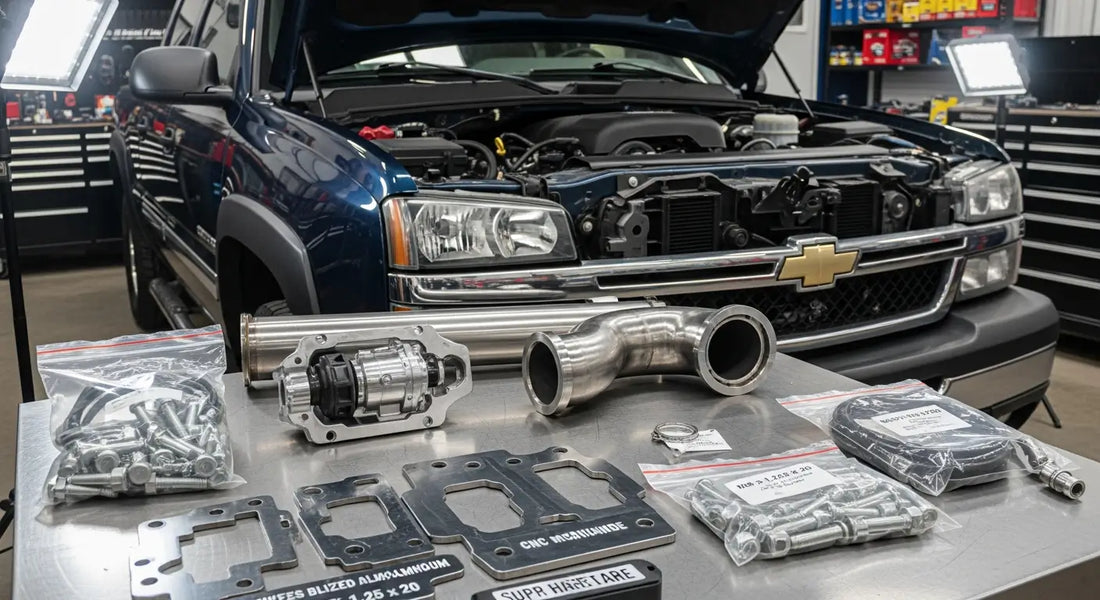

A proper LBZ EGR delete kit is more than just block-off plates. Here's what a complete kit covers:

• EGR Valve Block-Off Plate — Seals the intake manifold port where exhaust gas entered. Must be matched to LBZ manifold dimensions.
• EGR Cooler Bypass or Removal — Eliminates the coolant-fed heat exchanger. Some kits include a coolant reroute line; others cap the coolant ports at the cooler inlet and outlet.
• Up-Pipe Assembly — The LBZ uses a dual up-pipe configuration feeding the turbocharger. An LB7-style stainless up-pipe is often used for a cleaner, leak-free connection. Turbo inlet leaks are a known weak point on stock LBZ up-pipes ^[2].
• High-Flow Intake Elbow — Replaces the factory intake horn, improving airflow into the turbocharger compressor inlet.
• Gaskets and Hardware — Heat-rated gaskets for all mating surfaces; stainless hardware throughout.
• Delete Tune (required separately or bundled) — ECU calibration that removes EGR system commands and DPF (Diesel Particulate Filter) regeneration cycles from the fuel map.

The Diesel Dudes' GM/Chevy Duramax 6.6L LBZ Full Delete Bundle includes all hard parts plus a tuner, so you're not hunting down components separately.

Here's a side-by-side look at TDD's Duramax delete bundles across generations:

The LBZ is the simplest Duramax delete — no SCR, no DEF (Diesel Exhaust Fluid) system to remove. The LML added urea injection in 2011, significantly increasing delete complexity and cost. The L5P is the most involved platform, requiring an unlock tool and CAN bus plug installation before tuning can begin.

Let's break it down generation by generation so you know exactly what changes as these engines evolved:

The LB7 (2001-2004) predates EGR entirely — no EGR valve or cooler at all. The LLY (2004-2005) introduced EGR to the Duramax platform for the first time to meet EPA Tier 2 NOx targets under 40 CFR Part 86. The LBZ carried that same EGR architecture forward with refinements to the cooler design, but retained the same fundamental layout: a coolant-fed EGR cooler feeding into the intake manifold via a single EGR valve.

The LMM (2007.5-2010) added a DPF to the exhaust stream but still ran no DEF injection — making it the closest cousin to the LBZ in delete complexity. The big jump came with the LML (2011-2016), which added a full SCR (Selective Catalytic Reduction) stack and DEF injection, making the delete scope considerably larger. The L5P (2017-2023) added additional ECU security layers requiring a proprietary unlock process before tuning is even possible.

Bottom line: if you own an LBZ, you have the most straightforward path to a clean, complete delete among all EGR-equipped Duramax generations — fewer components, simpler routing, and proven tuning support from platforms like EFI Live AutoCal V3.

Here's what actually changes under the hood after a proper EGR and DPF delete on an LBZ:

Lower Intake Temperatures: The EGR system routes exhaust gas — which can exceed 1,200°F at the valve — back into the intake charge. Blocking that pathway drops intake air temperatures measurably, giving the turbocharger cleaner, denser air to compress. Cooler charge air means better combustion efficiency and reduced EGT (Exhaust Gas Temperature) spikes under load.

Eliminated Coolant Contamination Risk: Once the EGR cooler is removed, the single leading cause of coolant-in-oil events on these engines disappears entirely. The Diesel Dudes Technical Team has documented this as the most common failure mode on LBZ trucks with over 150,000 miles.

Reduced Soot Load: EGR recirculates unburned carbon particulates into the intake. Over time, that soot accumulates on intake valves, ports, and the EGR valve itself — restricting airflow and degrading combustion. Deletion stops that accumulation permanently.

Power Gains: Paired with a delete tune on the EFI Live AutoCal V3, LBZ owners consistently report 40-60 hp and 80-100 lb-ft of torque gains over stock calibration — primarily from unlocked fueling tables, removed DPF backpressure, and optimized timing advance. Fuel economy improvements of 2-3 MPG on the highway are also commonly reported with conservative tune maps.

Sequence matters on a Duramax delete. Getting the order wrong is the most common mistake our customer support team sees. Follow this workflow:

1. Step 1 — Tune First: Connect your EFI Live AutoCal V3 or equivalent delete tuner via OBD-II port. Flash the ECU with your delete tune before touching any hardware. This prevents fault codes from triggering during disassembly and sets the ECU baseline correctly.
2. Step 2 — Unplug the Air Intake Throttle Valve (AITV): Located on the driver's side of the motor, beneath the intake near the intercooler pipe. Unplug it and leave it unplugged permanently. A connected AITV can stick closed and cause drivability problems post-tune.
3. Step 3 — Install the DPF and CAT Delete Pipe: Remove the OEM DPF canister and replace it with your DPF and CAT delete pipe. Do not drive the truck until this step is complete — tuning removes DPF regen commands, so an in-place DPF will not function correctly.
4. Step 4 — Install the EGR Delete Kit: Remove the EGR valve, cooler, and associated plumbing. Install block-off plates, up-pipe, and intake elbow per kit instructions. Ensure all coolant ports are properly capped or rerouted.
5. Step 5 — Verify and Clear Codes: Reconnect battery, start the engine, scan for DTCs (Diagnostic Trouble Codes), and verify all systems are operating as expected.

Federal law is unambiguous here. 42 U.S.C. § 7522 — the prohibited acts section of the Clean Air Act — makes it unlawful for any person to remove or render inoperative any emission control device on a motor vehicle operated on public roads. The EPA's enforcement authority under 40 CFR Part 86 covers all light-duty diesel trucks, including 2006-2007 LBZ-equipped vehicles.

That said, the practical enforcement landscape for off-road and competition vehicles has historically focused on commercial fleet tampering at scale, not individual truck owners using equipment on private property or closed courses. The key legal distinction is intended use — a truck used exclusively off-road has a different regulatory profile than one driven daily on public highways.

State-level rules add another layer. California operates under California Air Resources Board (CARB) authority with standards that exceed federal minimums — emissions modifications that may be tolerated in some other states are actively enforced in California. Several northeastern states have adopted CARB-equivalent standards as well.

The Diesel Dudes sells delete kits for off-road use only. If you're planning a dedicated trail rig, competition truck, or work machine that stays off public roads, an EGR delete is a legitimate performance upgrade. If your truck sees regular road use, understand the legal framework fully before proceeding.

Here's the vehicle compatibility breakdown for LBZ-specific delete components from The Diesel Dudes:

The full delete bundle is the right call if you're doing a comprehensive build — it bundles the EGR delete kit, exhaust delete pipe, and tuner in one confirmed-fitment package. If you've already got a tuner dialed in and just need the EGR hardware, the standalone LBZ EGR Delete Kit ships ready to install. Either way, confirm your exact model year before ordering — the 2007 production run included both LBZ and early LMM vehicles depending on build date.
