Why Your Diesel Won't Regen: Causes, Fix Costs & Solutions

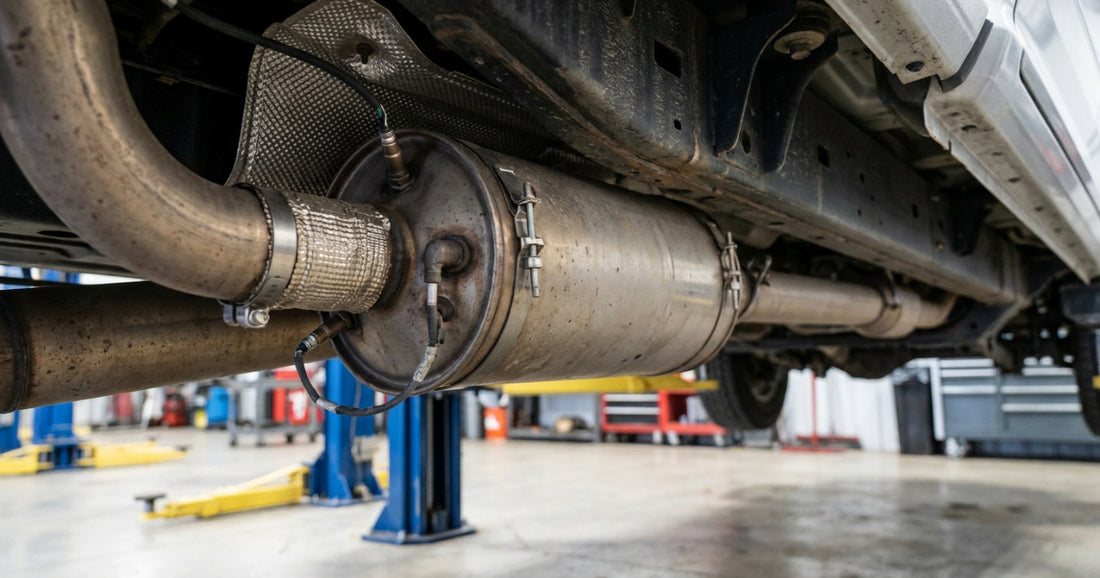

Your diesel particulate filter traps soot particles from exhaust gases — it's like your truck's lungs. Over time, this soot builds up and restricts exhaust flow, choking performance. Regeneration solves this by heating the filter hot enough to burn off accumulated soot, turning it into harmless ash and CO2.^[1]

There are three types of regeneration your truck performs. Passive regeneration happens automatically during highway driving when exhaust temps naturally reach 480-750°F. The heat burns off soot without you noticing anything different — your truck's just cleaning itself on the go.

Active regeneration kicks in when passive regen isn't enough. Your truck's ECU injects extra fuel into the exhaust stream to spike temperatures to around 1,110°F.^[1] You'll notice slightly higher RPMs at idle, a distinct smell from the exhaust, and increased fuel consumption. This typically takes 20-60 minutes to complete.^[2]

Forced regeneration requires a scan tool and happens when active regen fails or gets interrupted too many times. A technician initiates the process manually while the truck is parked. This is your last option before professional DPF cleaning or replacement becomes necessary.

Most trucks need to regenerate every 300-500 miles depending on driving conditions. Short trips and city driving trigger regens more frequently than highway miles — sometimes doubling the frequency. If you're doing mostly city driving or lots of idling, you're not giving passive regen enough time to work.

Let's break down the real costs. A DPF that's beyond regeneration needs replacement — $2,500-$4,500 when you factor in OEM parts and labor. Aftermarket options run $1,200-$1,800 but may not last as long.^[2]

Excessive backpressure from a plugged filter damages your turbo. The turbo has to work harder to push exhaust through a restricted filter, which accelerates bearing wear and eventually causes failure. That's another $2,000-$3,500 for turbo replacement.

Oil dilution is the silent killer. When your truck attempts multiple failed regens, unburned fuel washes past the rings and contaminates your oil. Fuel dilution as low as 4% can shear your oil viscosity from 40-weight down to 30-weight, destroying bearing protection. This leads to catastrophic engine damage costing $5,000-$15,000 or more.

Fuel economy takes a 15-25% hit when your DPF is clogged. On a truck that normally gets 16 MPG, you're looking at 12-13 MPG. That's an extra $40-60 per tank at current diesel prices. Multiply that over a year and you're burning an extra $500-800 in fuel.

Here at The Diesel Dudes, we've tracked repair costs across 500+ customer cases. The average total cost of ignoring regen problems until something breaks is $4,200. Catching it early with a $150 diagnostic or $400-600 professional cleaning saves thousands.

Dashboard warnings are your first alert. Each manufacturer has specific indicators:

• Ford Powerstroke: "Exhaust Filter Full" message with wrench icon, sometimes accompanied by "High Exhaust System Temperature" warning
• Ram Cummins: Yellow DPF symbol, "Perform Service" message, or "Exhaust Filter 5% - 100% Full" readouts
• GM Duramax: "Exhaust Filter 75% Full" or similar percentage messages, check engine light with DPF-related codes

Reduced power is the next warning sign. Your truck enters limp mode to protect the engine from excessive backpressure. Acceleration feels sluggish and you can't exceed 45-55 MPH in most cases. This is your truck's way of preventing catastrophic damage — backpressure readings above 4.0 PSI at idle mean you're approaching critical capacity.

The exhaust smell changes noticeably during active regen attempts. You'll detect a stronger, almost sweet odor — some drivers describe it as burning oil or hot metal. This is normal during regeneration as temperatures spike to 1,110°F or higher.

Engine temperatures run higher than normal. Your temp gauge may climb closer to the red zone, especially during stop-and-go driving or while towing. If you're seeing elevated coolant temps combined with DPF warnings, regeneration is either in progress or being attempted.

Your driving pattern matters too. If you're doing mostly short trips under 20 minutes or idling extensively, you're not giving passive regen enough time to work. City-only driving is the fastest way to clog a DPF — highway miles are your friend.

Understanding which problem you're dealing with saves diagnostic time and money. Here's the breakdown of what's actually blocking your regen:

Problem #1: Severely Clogged Diesel Particulate Filter

When your DPF reaches 85% capacity or higher, regeneration can't keep up with soot accumulation. The filter is physically too full to burn clean. This happens from excessive idling, short trips under 20 minutes, and city-only driving — your truck never gets hot enough for passive regen to work.

You'll see constant regen attempts that never finish. The truck tries to clean itself but can't reach the necessary 1,100°F temperatures or maintain them long enough. Three or more warning lights illuminate simultaneously — exhaust filter full, check engine, and sometimes the glow plug indicator.

A differential pressure reading above 4.0 PSI at idle confirms severe clogging. Normal readings sit between 0.5-2.0 PSI. Anything above 3.5 PSI means you're approaching critical capacity and need immediate attention.

Problem #2: Faulty Differential Pressure Sensor

The differential pressure sensor measures exhaust pressure before and after the DPF. Your truck's computer uses this data to determine when regeneration is needed and whether it's working. Carbon buildup on the sensor tubes is the most common failure point — these small tubes connect to the exhaust stream and get coated with soot over time.

Electrical connector corrosion is the second most common issue, especially in areas with harsh winters and road salt. Most sensors last 80,000-120,000 miles before failing, though short-trip driving accelerates failure.

False regen triggers are the telltale symptom. Your truck initiates regen when the DPF is only 30-40% full. Or the opposite happens — no regen initiation despite the DPF being 80%+ full because the ECU receives bad data and doesn't know the filter needs cleaning.

Problem #3: Insufficient Exhaust Heat or Duration

This is the most common cause in city-driven trucks. Passive regeneration requires sustained exhaust temps of 480-750°F, which only happens during extended highway driving at 45+ MPH. Short trips, stop-and-go traffic, and excessive idling prevent these temps from building.

Active regen gets interrupted when you shut the truck off mid-cycle. The ECU aborts the process if temps drop below 600°C or if conditions become unsafe. Each interrupted regen adds more soot without cleaning the filter — you're digging a deeper hole.

City driving can double your regen frequency compared to highway miles. If you're only doing 10-15 minute trips, you're never giving the system time to complete even active regen cycles.

Problem #4: Contaminated or Low-Quality Diesel Fuel

Poor fuel quality creates excessive soot that overwhelms the DPF. Low cetane fuel (below 40) doesn't burn completely, sending more particulates into the filter. Contaminated fuel with water or biological growth clogs injectors, causing incomplete combustion and even more soot production.

Fuel additives can cut soot production by 50% when used consistently. Premium ULSD (Ultra-Low Sulfur Diesel) combined with cetane boosters helps regens complete successfully and reduces frequency by 20-40%.

Problem #5: Bad Exhaust Temperature or NOx Sensors

Your truck monitors exhaust temps at multiple points to control regeneration. Failed temperature sensors send false readings to the ECU, which then aborts regen thinking conditions are unsafe. NOx sensors that fail can also prevent regen initiation entirely.

These sensors typically fail from heat cycling and carbon contamination. Check engine codes like P2463 (DPF restriction) or P2459 (DPF regen frequency too high) often accompany sensor failures.

Problem #6: Mechanical Issues (Turbo Leaks, Stuck EGR, Failed DOC)

Exhaust leaks upstream of the DPF prevent proper backpressure readings. A stuck-open EGR valve dilutes exhaust temps, making regeneration impossible. A failed Diesel Oxidation Catalyst (DOC) can't convert NO to NO2, which is critical for initiating the soot burn.

Turbo issues create abnormal pressures that confuse the ECU. Any mechanical fault that disrupts exhaust flow, temperature, or pressure will prevent successful regeneration.

Problem #7: ECU Software Glitches or Corrupted Parameters

Sometimes the truck's computer itself is the problem. Corrupted calibration files, outdated software, or failed ECU components prevent proper regen initiation or control.^[3] Ford, Ram, and GM have all issued software updates to refine ECU logic and reduce false aborts in stop-and-go conditions.^[3]

A dealership reflash with updated software sometimes fixes chronic regen issues when no mechanical problems exist. This is especially common in 2011-2016 trucks that haven't received manufacturer updates.

Proper diagnosis saves you from throwing parts at the problem. Here's the systematic approach we use at The Diesel Dudes:

Step 1: Scan for Trouble Codes
Connect an OBD-II scanner and pull codes. Common DPF-related codes include P2002 (DPF efficiency below threshold), P2463 (DPF restriction - soot accumulation), P2459 (DPF regen frequency too high), and P244B (DPF differential pressure too low). These codes tell you whether the issue is mechanical, sensor-related, or cycle-based.

Step 2: Check Soot and Ash Levels
A quality scan tool like the Snap-on TRITON-D10 can read actual soot percentage and ash levels. Normal soot load should be under 50% between regens. If you're seeing 85%+ consistently, you've got a clog or a regeneration process that isn't working.

Step 3: Inspect Sensors and Connections
Visually inspect the differential pressure sensor tubes for carbon buildup. Check electrical connectors for corrosion, especially in the engine bay where moisture accumulates. Exhaust temperature sensors should show logical readings that increase under load.

Step 4: Test Fuel Quality and Filters
Drain a fuel sample and look for water separation or contamination. Replace fuel filters if they haven't been changed in 15,000+ miles. Consider adding a cetane booster to your next tank and monitor whether regen frequency decreases.

Step 5: Check Oil Condition
Pull the dipstick and smell the oil. If it smells strongly of diesel fuel, you've got fuel dilution from failed regen attempts. Oil analysis can quantify the percentage — anything above 2% fuel dilution means you need an oil change and to address the root regen failure.

Step 6: Monitor During Test Drive
Take the truck on a 30-minute highway drive at 55+ MPH to attempt passive regen. Monitor exhaust temps, turbo boost, and whether the DPF pressure decreases. If temps stay below 480°F or pressure doesn't drop, you've confirmed passive regen isn't working.

Immediate Fixes to Complete Regeneration

Highway Drive Cycle (Passive Regen):
If your DPF is under 75% full and you haven't thrown hard codes, try a sustained highway drive. Get on the interstate and maintain 55+ MPH for 30-45 minutes. Keep RPMs around 2,000 and avoid excessive acceleration or braking. This allows exhaust temps to naturally reach 480-750°F and initiate passive regeneration.

You'll know it's working if the exhaust smell changes and engine temps increase slightly. Don't shut off the truck until you've driven at least 30 minutes — interrupting passive regen defeats the purpose.

Parked Regeneration (Active Regen):
If driving doesn't work or your truck is requesting parked regen, here's the process:

1. Park in a well-ventilated outdoor area away from flammable materials
2. Put the transmission in Park and engage the parking brake
3. Let the engine reach normal operating temperature (190-210°F coolant temp)
4. Follow dashboard prompts or press the DPF regen button if equipped
5. Keep the truck idling at 1,400-2,000 RPM (per manufacturer specs)
6. Do NOT shut off the engine for 30-60 minutes until the regen completes

Expect to burn 0.5-1 gallon of fuel during parked regen. You'll see elevated exhaust temps (hot exhaust warning is normal), hear the cooling fans run continuously, and smell the characteristic regen odor. The process is complete when the dashboard indicators turn off and idle returns to normal.

Forced Regeneration with Scan Tool:
When active regen fails repeatedly, a forced regen is necessary. This requires a quality scan tool like the Snap-on TRITON-D10, BlueDriver, or dealer-level equipment. Connect to the diagnostic port, warm the engine to operating temp, and initiate the forced regen command through the tool's menu. Monitor soot levels throughout the process — they should drop from 80%+ down to under 10% when complete.

Root Cause Repairs and Long-Term Solutions

Sensor Cleaning or Replacement:
Clean differential pressure sensor tubes with brake cleaner and compressed air. If readings don't stabilize, replace the sensor ($100-300 parts plus labor). Exhaust temp sensors typically need replacement rather than cleaning ($150-250 each).

Fuel System Service:
Replace fuel filters and add a quality cetane booster like Hot Shot's Secret Everyday Diesel Treatment (EDT). This additive has been shown to reduce soot production by up to 50% and can cut regen frequency significantly. Premium ULSD (cetane 45+) burns cleaner and produces less soot than budget diesel.

Oil Change with Low-SAPS Synthetic:
If you've experienced fuel dilution, immediately change to a low-SAPS (Sulfated Ash, Phosphorus, and Sulfur) synthetic oil designed for diesels with DPF systems. Products like ENSO Synthetic Diesel Oil resist fuel dilution shear better than conventional oils. This prevents ash buildup in the DPF that would require premature cleaning.

Professional DPF Cleaning:
When soot levels exceed 85% and regeneration can't complete, professional cleaning is necessary. This involves removing the DPF and baking it in a specialized kiln to burn off ash and stubborn soot. Cost runs $400-600 and takes 2-4 hours. This extends DPF life and is far cheaper than replacement.

DPF Replacement:
If the DPF has physical damage, melted substrate, or ash levels that can't be cleaned, replacement is the only option. OEM filters cost $2,500-$4,500 installed. Remanufactured or aftermarket options run $1,200-$1,800 but may have shorter service life. We only recommend OEM or quality remanufactured units for long-term reliability.

ECU Software Updates:
Check with your dealer for available software updates that address regen logic. Ford, Ram, and GM have released multiple updates since 2011 that refine when and how regeneration occurs, reducing false aborts in city driving conditions.

Driving Habits That Matter:
Highway miles are your DPF's best friend. Schedule at least one 30-45 minute highway trip per week at 55+ MPH, even if it means taking the long way home. This simple habit allows passive regen to work naturally and prevents soot buildup. Avoid excessive idling — if you're parked for more than 10 minutes, shut it down.

When active regen initiates, let it complete. Don't shut off the truck mid-cycle unless there's an emergency. Each interrupted regen adds soot without cleaning the filter. If the dashboard requests parked regen, do it that day — don't put it off.

Fuel Quality Makes a Difference:
Always use premium ULSD (cetane 45+) from major truck stops. Budget diesel often has lower cetane and more contaminants, both of which increase soot production. Add a quality cetane booster and detergent additive like Hot Shot's Secret EDT to every tank. This can reduce soot by 50% and cut regen frequency by 20-40%.

Maintenance Schedule to Follow:
Change oil every 5,000 miles with CK-4 or FA-4 rated low-ash synthetic oil. This prevents ash buildup in the DPF and protects against fuel dilution damage. Replace fuel filters every 15,000 miles or annually, whichever comes first. Inspect differential pressure sensor tubes and connections every oil change — clean if needed.

Have a professional scan tool check performed every 30,000 miles to monitor DPF soot levels, sensor health, and check for pending codes before they become hard faults. This catches problems early when they're cheap to fix.

What About Delete Kits?
We get asked constantly about DPF delete kits. Here's the straight talk: removing emissions equipment (DPF, EGR, DEF) on vehicles operated on public roads violates federal EPA regulations and state laws. Fines can reach $4,527–$45,268 per violation (2025 inflation-adjusted Clean Air Act penalties) for individuals and $25,000+ for commercial operations. You'll also void your powertrain warranty and make the truck illegal to register in many states.

If you're running a dedicated off-road or closed-course vehicle, The Diesel Dudes offers complete delete bundles with tuning for maximum performance. But understand the legal implications before making that decision. For street-driven trucks, proper maintenance and quality fuel are the legal path to minimizing regen issues.

Fuel Additives That Actually Work:
Hot Shot's Secret Everyday Diesel Treatment (EDT) is proven to reduce soot production by up to 50% through cleaner combustion. It boosts cetane, cleans injectors, and preserves fuel system components. At $20-50 per gallon of concentrate (treats 500+ gallons of diesel), it's cheap insurance against excessive regen cycles.

Diagnostic and Regen Tools:
A quality scan tool pays for itself quickly. The Snap-on TRITON-D10 offers OEM-level diagnostics including forced regen capability, real-time soot monitoring, and comprehensive code reading. For budget-conscious owners, BlueDriver provides solid functionality for $100-150. Either tool lets you initiate forced regen without a $300 dealer visit.

Engine Oils for DPF Protection:
Low-SAPS synthetic oils like ENSO are specifically formulated to resist fuel dilution from failed regen attempts. In testing, ENSO was the only oil that didn't shear viscosity when contaminated with diesel fuel — critical for protecting bearings during regen issues. Expect to pay $40-60 per gallon, but extended oil life and DPF protection make it worthwhile.

Complete Performance Solutions:
For those seeking maximum performance and minimal maintenance, The Diesel Dudes offers complete delete bundles for off-road and closed-course use. Our EGR delete kits and DPF delete exhaust systems eliminate regen cycles entirely while unlocking 50-100+ HP and improving fuel economy by 2-4 MPG.

Every kit includes tuning from our proven delete tuner lineup — EZ Lynk, RaceMe Ultra, and EFILive AutoCal options available for Ford Powerstroke, Ram Cummins, and GM Duramax platforms. Installation is straightforward with our detailed instructions, and technical support is included with every order.
