Fix L5P Duramax MAP Sensor Failure the Right Way

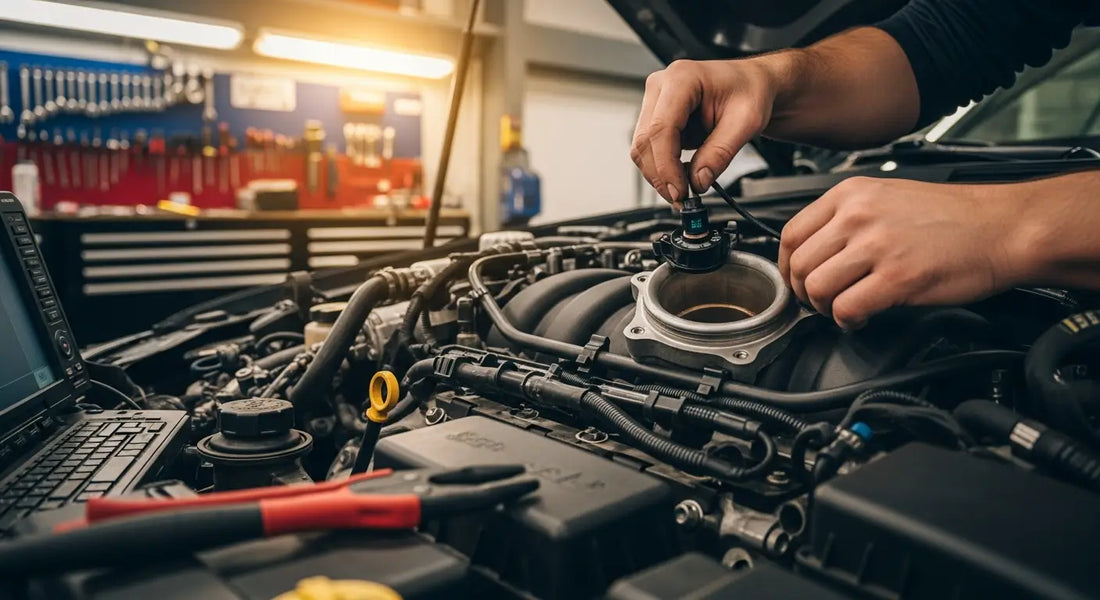

The L5P's EGR system dumps exhaust gases back into the intake manifold to hit EPA emissions targets. Smart for compliance — brutal for your TMAP sensor. That sensor mounts on the driver's side intake manifold, directly in the path of the soot stream, and its two pressure-sensing holes get caked with black carbon first because they're the smallest openings in the system. ^[1]

Think of it like your kitchen exhaust fan filter — it clogs before anything else does. Trucks that tow frequently or run lots of short trips build soot faster because the EGR system runs hardest in those conditions. Frequent regen cycles push even more particulate matter through the intake. High-mileage trucks past 100,000 miles show the most aggressive clogging, but we've seen L5P trucks develop MAP sensor issues as early as 30,000 miles under hard use. ^[1]

EGR Soot vs. Electrical Failure — Know the Difference

Electrical problems show up differently than clogging. A dead sensor gives you a flat zero reading or no signal at all. A clogged sensor gives erratic readings — jumping between 80 and 120 kPa at idle when it should hold steady at 95–105 kPa. Your scan tool will show the difference immediately. Electrical faults typically follow months of clogging, when constant heat cycling and vibration finally damage the wiring connector or corrode the pins. Internal sensor element failure is rare unless someone attacked it with a pick or compressed air.

How Clogging Kills Your Power

When soot blocks the sensing holes, the ECU receives false low-pressure readings. It thinks less air is entering the engine than actually is, miscalculates the air-fuel ratio, and limits turbo boost to protect the engine. The result? You'll notice 20–30% power loss under load — towing a trailer up a grade becomes a real struggle. Forum users consistently report these numbers before addressing their sensors, and mechanics confirm significant horsepower recovery post-fix.^[2]

Grab an OBD-II scanner and pull codes. P0105, P0106, P0107, P0108, P0109, P0110, or P0069 all point directly at TMAP issues on the L5P. P0069 — MAP-BARO correlation — is extremely common on these trucks. Any of those codes and you're looking at the sensor first.

Symptoms That Show Up Before the Check Engine Light

Performance symptoms appear well before the CEL. Watch for rough idle that wasn't there before, stuttering or surging at highway cruising speed — especially between 55–65 mph — and hesitation when you step on the pedal to merge or pass. The truck just doesn't respond like it used to. Towing a trailer that used to be no problem suddenly feels like you're dragging an anchor. Misfires might trigger additional P030X codes because the air-fuel mixture is so far off.

Here's the thing: we see this pattern constantly. Owner notices power loss for a month, the check engine light finally comes on, and by then the sensor is completely clogged. Symptoms worsen gradually over 5,000–20,000 miles depending on driving habits. Don't wait for the light.

Step-by-Step Diagnostic Process

1. Scan for codes — Pull DTCs. P0106 is the most common L5P MAP code. P0069 is close behind.
2. Check live data — A scanner with live data capability shows MAP kPa readings in real time. At idle, you should see a steady 95–105 kPa. Erratic jumping confirms clogging.
3. Visual inspection — Remove the sensor with a 10mm socket. Those two sensing holes should be clean and open. If they're black, you've confirmed the diagnosis.
4. Check the connector — Inspect the wiring connector for corrosion or damaged pins. To release a stubborn connector on the L5P, slide the tab toward the connector body, then push down — it's a common sticking point.

Let's break it down by what works, how long it lasts, and what it costs. Each fix has its place — the right call depends on your mileage, driving habits, and how long you plan to keep the truck running strong.

Fix #1: Solvent Cleaning (Start Here)

This is your first move. CRC Mass Air Flow Sensor Cleaner — not carb cleaner — sprayed carefully on the sensor face and port cleans the soot off those sensing holes without leaving residue. This process takes 20 minutes and works on dozens of trucks. The sensor looks pretty much like new post-clean. Monitor every 5,000 miles after cleaning because soot will return. Use this as your diagnostic confirmation too — if cleaning restores normal performance, you've confirmed the sensor was your problem.

Fix #2: OEM Replacement (Keep One in the Truck)

When cleaning isn't enough or you've damaged the sensing element, swap in GM/ACDelco PN 12681993. It's a direct replacement — 30 minutes with a 10mm socket. Pro tip: clean the manifold port while you're in there to extend the new sensor's life. Serious tip — carry a spare in your tool kit. If the sensor clogs at the wrong time out on the road, you don't want to be stranded.

Fix #3: S&B TMAP Spacer (Best Long-Term Play)

The S&B spacer relocates the TMAP sensor out of the direct soot path in the intake manifold. Bolt-on install, no tuning required, and forum users across multiple L5P threads endorse it as the best long-term prevention. Pair it with periodic cleaning checks every 5,000 miles and you've addressed the root cause.^[3]

Here's where guys go sideways trying to DIY this repair. The sensing element inside those two holes is precision-machined — it's not a drain you can unplug with a toothpick. Poking anything into those holes, or blasting them with high-pressure compressed air, can permanently destroy the sensor. You'll go from a $10 cleaning job to a mandatory $80 replacement.

Using carburetor cleaner is the other big mistake. Carb cleaner leaves residue and can attack the plastic housing and wiring insulation. Stick with CRC Mass Air Flow Sensor Cleaner or an equivalent non-residue MAP-specific formula. It's specifically engineered not to damage electronics.

Don't Buy Generic Sensors

Cheap third-party TMAP sensors fail prematurely — we see it constantly. The sensing element tolerances aren't as tight, the connectors don't seat as reliably, and they're more vulnerable to heat and vibration. Stick with GM/ACDelco PN 12681993. At $50–80, it's not expensive enough to gamble on a knockoff that fails in 8,000 miles.

Don't Ignore the Manifold Port

Replacing the sensor without cleaning the manifold port it mounts into just speeds up clogging on the new sensor. Take 2 minutes while you're in there — wipe the port clean. It's the difference between a repair that lasts and one that has you back in there six months later.

Prevention beats repair every time. If you're keeping your L5P stock, a 5,000-mile cleaning interval catches soot buildup before it causes symptoms. It's a 20-minute job — less time than an oil change. Keep a can of CRC MAF/MAP cleaner in your toolbox.

The S&B Spacer Is Worth Every Dollar

The S&B TMAP spacer relocates the sensor away from the heaviest soot zone in the intake manifold. You're not eliminating soot from the intake — EGR will keep doing its thing — but you're moving the most vulnerable component out of the blast zone. Forum data shows spacer sales up significantly as L5P owners recognize this as a recurring issue rather than a one-time fix. Pair the spacer with your 5,000-mile cleaning check and you've built a real maintenance system around this known weak point.

EGR Delete for Off-Road Trucks

Here's the thing — if your L5P runs off-road only, an EGR delete eliminates the root cause entirely. No EGR means no soot recirculating through the intake, no sensor clogging, and no repeat repairs. That's the long haul solution for trucks that aren't emissions-tested. A quality EGR delete kit paired with a proper tune transforms your L5P from a truck you're constantly maintaining back into the powerhouse it was built to be. Check out our EGR Delete for L5P Duramax 2017–2023 if that's your situation.

You don't need a lift or a shop full of specialty tools to tackle this. Here's everything laid out so you're not making a parts store run halfway through the job.

Total spend for a cleaning-only job: under $25 if you own a scanner. Full replacement with a spacer runs $150–200. Either way, you're way ahead of a dealer visit that'll cost $300+ in labor before parts.

Want to pair this with a cold air intake while you're in the engine bay? The S&B Cold Air Intake for L5P 6.6L 2017–2023 is a natural companion upgrade — better airflow in, cleaner sensor life out.

If you're running your L5P off-road and tired of cleaning that sensor every 5,000 miles, an EGR delete is the permanent answer. The EGR system exists purely for emissions compliance — it doesn't make your engine run better. In fact, it routes hot, sooty exhaust gases back through the intake, raising charge temperatures and dumping carbon on everything downstream including your TMAP sensor.

Delete it, and that soot stream disappears. Your intake stays cleaner, your TMAP sensor stays accurate, and your engine breathes cooler, denser air. The performance gains are real — mechanics consistently report 20–50+ HP recovered when clean sensor readings restore proper ECU fuel mapping and boost control.^[4]

What a Proper L5P Delete Looks Like

A full L5P delete means the EGR delete kit plus a matching tune. The tune tells the ECU to stop looking for EGR feedback — without it, you'll chase codes and limp mode all day. Our GM/Chevy Duramax 6.6 L5P Full Delete Bundle 2017–2023 packages everything together — EGR delete, DPF delete pipe, and tuning — so you're not piecing it together from three different sources. That's the bang for your buck move if your truck is already out of warranty and living life off the beaten path.

Pair it with the S&B Cold Air Intake and your L5P will breathe like a completely different animal — because it basically is one.

Most L5P MAP sensor issues are DIY-friendly — cleaning or replacing the TMAP sensor resolves the problem 80–90% of the time.^[5] But some situations call for a professional with factory-level diagnostic tools.

If you've replaced the sensor with a genuine ACDelco 12681993, cleared the codes, and the truck still throws P0106 or P0069 within a few drive cycles, you're likely dealing with a wiring fault, a corroded connector, or an ECU calibration issue. A shop with a factory Tech 2 or equivalent scanner can read live PIDs at a granularity that consumer OBD-II tools can't match.

Signs You Need More Than a Sensor

• Multiple MAP codes appearing simultaneously after a fresh sensor install
• P0069 combined with boost-related codes like P0299 (turbo underboost)
• Truck enters limp mode and won't clear with a simple code reset
• Live data shows MAP readings that don't respond at all to throttle input — possible ECU communication fault
• Connector pins show green corrosion or physical damage

Here's the thing — if your truck is still under GM's 5-year/60,000-mile powertrain warranty, get it documented at a dealer before you touch anything. A MAP sensor failure at 17,500 miles is a legitimate warranty concern, and you want that paper trail.
