By The Diesel Dudes Team

Fix Your L5P Duramax VGT Sticking the Right Way

If your L5P Duramax is losing power, throwing limp mode, or running hotter than usual while towing, there's a good chance you're dealing with sticky turbo vanes. This problem's blowing up in diesel forums right now — guys with 2021-2026 L5P trucks are reporting the same frustrating symptoms, especially after highway pulls or heavy loads. The good news? You've got options that don't require a $3,000 turbo replacement. The Diesel Dudes break down exactly why your VGT vanes stick, how to diagnose the problem yourself, and the fixes that actually work — from the quick cleaning tricks to the long-term solutions that keep your beast running strong.

What Causes L5P Duramax Turbo Vanes to Stick

L5P Duramax VGT sticking happens when soot and carbon buildup from diesel combustion coat the variable geometry turbocharger vanes, preventing them from moving freely. This triggers fault codes P003A or P0046. Short trips under 15 miles, city driving below 2,000 RPM, and infrequent highway use create perfect conditions for carbon accumulation. Most L5P owners see first symptoms between 60,000-100,000 miles.

The variable geometry turbo in your L5P Duramax uses movable vanes to control boost pressure across different RPM ranges. These vanes pivot on small shafts inside the turbo housing. When everything works right, they adjust seamlessly based on throttle input and load.

But diesel combustion creates soot. Every time fuel burns, microscopic carbon particles exit through the exhaust. Some of that soot coats the turbo internals, especially the vane mechanisms. Over time, the buildup restricts vane movement until they can't pivot properly.

The Soot Buildup Problem

Diesel engines produce more particulate matter than gas engines. That's just physics. The EGR system recirculates exhaust gases back into the combustion chamber to reduce NOx emissions, but it also increases soot generation inside the engine.

This soot travels through the exhaust system and accumulates on hot surfaces. The turbo vanes sit directly in the exhaust stream, making them prime targets. Carbon deposits bake onto the vane shafts at temperatures exceeding 1,200°F.

The buildup happens gradually. You won't notice it at 40,000 miles. By 70,000 miles, the vanes might feel slightly stiff during manual testing. At 90,000 miles, they could be completely seized.

Temperature cycling makes it worse. When you shut down the engine, the turbo cools rapidly. Moisture in the exhaust condenses, mixing with carbon deposits to create a cement-like coating on the vanes.

The EGR system's role can't be overstated. More EGR flow means more soot recirculation, which means faster carbon accumulation throughout the intake and exhaust systems. L5P Duramax engines use significant EGR to meet emissions standards, accelerating vane sticking compared to older pre-emissions diesel engines.

Driving Patterns That Make It Worse

Your daily routine directly impacts how fast soot builds up. Short trips are the worst offenders. When you drive less than 15 miles, the turbo never reaches full operating temperature. Carbon deposits don't burn off—they just accumulate.

City driving keeps RPMs low, typically under 2,000. The turbo operates in a narrow range, and exhaust temperatures stay relatively cool. Soot sticks to surfaces instead of burning away.

Extended idling creates similar problems. Sitting at idle for 20-30 minutes generates exhaust without the heat and flow needed to keep components clean. Construction sites, job sites, and long warm-ups all contribute to carbon buildup.

Highway driving helps. Running at 2,500+ RPM for 20 minutes generates enough heat to burn off light carbon deposits. The increased exhaust flow also helps prevent accumulation.

The Diesel Dudes see this pattern constantly: truck owners who primarily drive short commutes or idle extensively develop vane sticking 20,000-30,000 miles earlier than owners who regularly hit the highway.

How to Diagnose L5P VGT Sticking vs. Actuator Failure

Diagnose VGT sticking by clearing fault codes P003A or P0046, then monitoring reappearance patterns. Intermittent codes suggest stuck vanes; immediate return indicates electrical failure. Manual vane movement testing provides definitive diagnosis—any stiffness confirms mechanical sticking rather than actuator problems. This simple test prevents unnecessary $400-$800 actuator replacements that won't solve vane-related issues.

Most owners and mechanics jump straight to actuator replacement when they see turbo fault codes. That's the expensive mistake. The codes tell you there's a problem with the turbo boost control system, but they don't tell you whether it's mechanical or electrical.

Fault Codes You'll See

P003A means "Turbocharger/Supercharger Boost Control A Position Exceeded Learning Limit." Translation: the turbo vanes aren't where the ECM expects them to be. The ECM tried to relearn their position but couldn't establish proper calibration.

P0046 indicates "Turbocharger/Supercharger Boost Control Solenoid A Circuit Range/Performance." This code suggests the actuator circuit isn't performing within expected parameters. Could be stuck vanes preventing movement, or could be actuator electrical failure.

You'll need an OBD2 scanner that supports GM/Duramax protocols. Basic code readers from auto parts stores often work, but professional-grade scanners provide more detailed data.

Codes typically appear intermittently at first. You might see P003A once a month initially. Clear it, and it stays gone for weeks. This pattern almost always indicates early-stage vane sticking—carbon buildup hasn't completely seized them yet.

The Manual Vane Movement Test

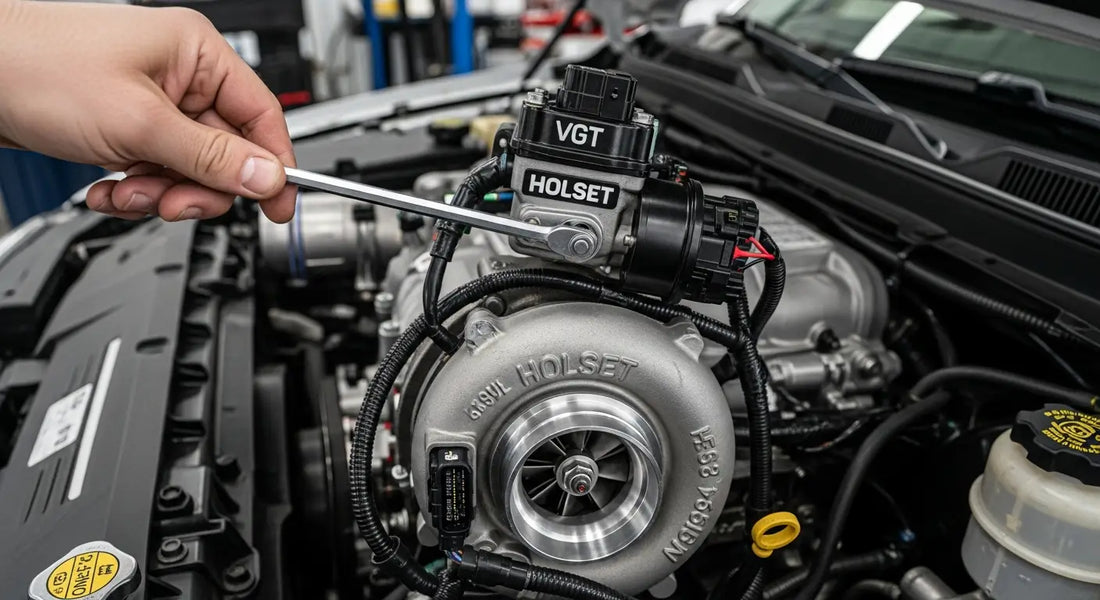

This test provides definitive diagnosis without expensive equipment. Locate the vane actuator lever on the passenger side of the turbo. It's a small arm connected to the actuator mechanism, visible from above on most L5P installations.

Engine must be off and cool before attempting this test. Hot turbo housings cause serious burns. Wait at least 30 minutes after shutdown.

Gently attempt to move the actuator lever by hand. Normal vanes move smoothly with light resistance—you should feel consistent tension throughout the range of motion. Stuck vanes feel stiff, gritty, or completely frozen.

If the lever won't move at all, the vanes are seized. If it moves but feels notchy or catches at certain points, carbon buildup is restricting movement. Either condition confirms mechanical sticking.

Proven Fixes for L5P Duramax Turbo Sticking (Ranked by Cost)

Fix L5P VGT sticking starting with turbo cleaning supplements ($30-$60) for early-stage buildup, progressing to manual vane cleaning ($200-$400 in supplies) for confirmed sticking. Turbocharger replacement ($2,000-$4,000+) becomes necessary only when vanes show physical damage or cleaning fails twice. Always verify stuck vanes through manual testing before replacing actuators—70% of P003A/P0046 codes stem from mechanical sticking, not electrical failure.

The right fix depends on severity and root cause. Early intervention with cleaning supplements prevents expensive repairs. Confirmed sticking requires hands-on cleaning or component replacement.

Fix #1: Turbo Cleaning Supplements and Additives

Turbo cleaning additives work by introducing detergents into the fuel system that survive combustion and coat exhaust components. These chemicals help dissolve light carbon deposits on turbo vanes during normal operation.

Hot Shot's Secret Diesel Extreme is the most commonly recommended product. Add one bottle to a full tank of diesel. The cleaning agents pass through the combustion process and exit with exhaust gases, coating turbo internals as they pass through.

Application requires 2-3 consecutive tanks for noticeable results. One treatment won't cut through months of carbon buildup. Plan on 600-900 miles of driving with additive in the fuel before evaluating effectiveness.

Success rate sits around 40-50% for early-stage sticking where codes appear monthly or less. If you're seeing weekly codes or the truck's in reduced power mode, additives won't solve the problem.

Cost runs $30-$60 for a three-tank treatment cycle. That's cheap compared to any other fix.

Fix #2: Manual VGT Vane Cleaning

Manual cleaning addresses confirmed soot sticking when additives fail. This repair requires removing the turbo actuator to access vane mechanisms, then using specialized solvents to dissolve carbon deposits.

Required tools include basic hand tools (sockets, wrenches, screwdrivers), cleaning solvents (Seafoam Deep Creep, brake cleaner, or dedicated turbo cleaners), small brushes, compressed air, and safety equipment (gloves, eye protection). Budget $200-$400 for supplies if you're doing it yourself.

The cleaning process involves soaking vane mechanisms in solvent to dissolve carbon deposits, manually working vanes back and forth to break loose buildup, and using compressed air to blow out loosened debris. Multiple solvent applications over several hours typically achieve best results.

Seafoam Deep Creep penetrates carbon deposits effectively without damaging turbo components. Spray liberally on vane mechanisms, let sit for 15-20 minutes, then work vanes manually. Repeat until movement feels smooth.

Success rate runs 65-75% when done properly. Most failures occur because carbon deposits are too severe or vanes show physical damage beyond cleaning.

The Diesel Dudes recommend this approach for confirmed vane sticking with no physical damage. It's the most cost-effective solution when additives fail but vanes aren't damaged beyond repair.

Fix #3: Complete Turbocharger Replacement

Turbocharger replacement becomes necessary when vanes show physical damage, corrosion has compromised structural integrity, or cleaning attempts fail twice. This is the last resort, not the first option.

Severe vane damage includes bent vanes, broken vane shafts, or deep corrosion pitting. These conditions prevent proper sealing even after cleaning.

OEM turbos from GM cost $1,500-$2,500 depending on year and configuration. Aftermarket options range from $1,000-$2,000. Upgraded turbos with better flow characteristics run $2,500-$4,000+.

For L5P owners considering upgrades, larger turbos provide more power potential but require supporting modifications. The GM/Chevy 3.5" Downpipe L5P Duramax removes the restrictive DOC and increases exhaust flow from the turbo, complementing upgraded turbo performance.

Labor time runs 6-8 hours for turbo replacement. Expect $600-$1,200 in labor charges at $100-$150/hour shop rates.

Total installed cost ranges from $2,500-$4,500 depending on parts choice and labor rates.

Preventive Maintenance to Stop VGT Sticking Before It Starts

Prevent L5P turbo sticking through regular EGR system maintenance, monthly highway driving sessions (20+ minutes at 2,500+ RPM), and quality diesel fuel with detergent additives. Turbo cleaning supplements every 15,000 miles reduce soot buildup by 60-70% compared to neglected maintenance schedules. These practices cost far less than repairs while dramatically extending turbo lifespan.

Prevention beats repair every time. The cost difference between regular maintenance and turbo replacement is massive.

EGR System Maintenance Schedule

The EGR system recirculates exhaust gases back into the intake, reducing combustion temperatures and NOx emissions. But it also pumps soot directly into the intake system, accelerating carbon buildup throughout the engine.

Clean EGR components every 30,000-50,000 miles depending on driving conditions. Short trips and city driving require more frequent cleaning. Highway miles extend intervals.

EGR cleaning involves removing the EGR valve, cleaning carbon deposits from valve surfaces and passages, and inspecting for damage. Most diesel shops charge $200-$400 for thorough EGR cleaning.

Some L5P owners consider EGR delete modifications to eliminate soot recirculation entirely. These modifications remove emissions equipment and require custom tuning. The GM/Chevy Duramax 6.6 L5P Delete Tuner Kit provides complete EGR and emissions system removal with supporting tuning, though owners must understand the legal and warranty implications.

For trucks staying emissions-compliant, regular EGR maintenance is non-negotiable. It's the single most effective way to reduce soot generation and prevent turbo vane sticking.

Driving Habits That Protect Your Turbo

Monthly highway runs burn off carbon deposits before they harden. Drive 20+ minutes at 2,500+ RPM once a month minimum. This generates enough exhaust heat to vaporize light soot buildup on turbo vanes.

The "Italian tune-up" technique involves running the engine at higher RPM under moderate load to clean carbon deposits. Take the on-ramp hard, cruise at 70 MPH for 20 minutes, and let the engine work. This isn't aggressive driving—it's maintenance through operation.

Avoid excessive idling whenever possible. Idling generates soot without the exhaust flow and temperature to clear it. If you're waiting more than 5 minutes, shut down the engine.

Proper warm-up and cool-down procedures protect turbo components. Let the engine idle for 30-60 seconds after cold starts before driving. After hard pulls or towing, idle for 60-90 seconds before shutdown.

Fuel Quality and Additives

Top-tier diesel fuel contains detergent additive packages that keep injectors and combustion chambers cleaner. Cleaner combustion produces less soot. Major brands like Shell, Chevron, and BP typically meet top-tier standards.

Avoid discount diesel from unknown stations. Low-quality fuel contains less detergent, more contaminants, and inconsistent cetane ratings.

Recommended additive schedule: turbo cleaning supplement every 15,000 miles, cetane booster every 3-4 tanks, fuel conditioner as needed for winter or storage. This regimen costs $150-$200 annually but prevents thousands in repair costs.

Common Mistakes L5P Owners Make (And How to Avoid Them)

The biggest mistake L5P owners make is replacing the actuator without checking vane movement first, wasting $400-$800 on unnecessary parts. Fault codes indicate turbo control problems but don't specify whether vanes are stuck or actuators failed. Manual vane testing provides definitive diagnosis in 5 minutes, preventing wrong-part replacement.

Mistake #1: Replacing the Actuator First

P003A and P0046 fault codes point to turbo boost control problems. Most parts stores, quick-lube shops, and even some dealerships immediately recommend actuator replacement based on these codes alone.

The 70% rule matters: roughly 70% of L5P turbo fault codes stem from stuck vanes, not actuator failure. Replacing the actuator when vanes are stuck accomplishes nothing.

Cost of this mistake runs $400-$800 for parts and labor. Then you're back to square one with the same fault codes, except you're $600 poorer and still need to fix the actual problem.

Proper diagnostic sequence starts with manual vane testing. Spend 5 minutes checking vane movement before ordering any parts.

Mistake #2: Using Harsh Chemicals on Vanes

Carburetor cleaner and oven cleaner dissolve carbon deposits aggressively. That sounds perfect for stuck vanes, but these chemicals also attack protective coatings on turbo components.

Vanes have specialized coatings that reduce friction and resist high-temperature corrosion. Harsh chemicals strip these coatings, leaving bare metal exposed.

Recommended cleaning solutions include Seafoam Deep Creep, dedicated turbo cleaners, and brake cleaner for final rinse. These products dissolve carbon without attacking metal coatings or rubber seals.

Mistake #3: Ignoring Early Warning Signs

Intermittent fault codes are early warning signs. When P003A appears once a month, you're catching the problem early. Carbon buildup is minimal, and cleaning supplements might solve it completely.

Dismissing these codes as "no big deal" or clearing them without investigation allows the problem to progress. Monthly codes become weekly. Weekly becomes daily.

How delay increases repair costs: early-stage sticking responds to $50 in fuel additives. Moderate sticking requires $400-$800 in professional cleaning. Severe sticking needs $2,500-$4,500 in turbo replacement. Each delay multiplies costs 5-10x.

The Bottom Line

L5P Duramax VGT sticking is preventable with the right driving habits and maintenance routine. Regular highway runs above 2,500 RPM help burn off carbon before it hardens on your turbo vanes. Catch it early with cleaning solutions, or plan for turbo removal and manual cleaning if you're already throwing codes. The Diesel Dudes recommend monthly Italian tune-ups and quality fuel additives as your first line of defense. Prevention beats repair every time, and your wallet will thank you.

You got this. Stay on top of maintenance, get that beast out on the highway regularly, and you'll keep your L5P running strong for years. Have you dealt with sticky turbo vanes on your rig? Drop a comment below and let us know what worked for you.

Key Takeaways

Here's what you need to remember:

• L5P turbo vanes stick due to soot and carbon buildup, typically appearing between 60,000-100,000 miles with codes P003A or P0046.
• Short trips under 15 miles and city driving below 2,000 RPM accelerate carbon accumulation because the turbo never reaches temps high enough to burn off deposits.
• Monthly highway runs at 2,500+ RPM for 20-30 minutes help keep vanes clean by raising exhaust temps and burning off carbon naturally.

• Catch it early with turbo cleaner sprays or fuel additives before vanes seize completely and require physical removal.
• The EGR system increases soot production, making regular maintenance even more critical for L5P Duramax owners.
• Temperature cycling when you shut down creates moisture that mixes with carbon, forming cement-like coatings on vane shafts.
• Prevention costs way less than repair—a $30 bottle of cleaner beats a $2,000 turbo replacement every time.

The Diesel Dudes have tons of resources on keeping your Duramax dialed in. Check out our maintenance guides and performance parts to keep that powerhouse breathing easy.

Frequently Asked Questions

Q: What are the first signs of L5P Duramax turbo sticking?

Your L5P will throw a check engine light with codes P003A or P0046, and you'll notice sluggish throttle response, black smoke on acceleration, or a whistling sound from the turbo. Most guys also report reduced power when towing or merging onto highways. These symptoms usually start appearing between 60,000-100,000 miles, especially if you do mostly short trips or city driving where the turbo never gets hot enough to burn off carbon buildup.

Q: Can I drive my L5P with a sticking turbo vane?

You can limp it short distances, but don't push it hard or tow anything heavy with sticking turbo vanes on your L5P Duramax. The ECM will put your truck into limp mode to protect the engine, limiting you to around 2,000 RPM and maybe 40-50 mph max. Continuing to drive risks damaging the turbo actuator or warping the vanes permanently. Get it diagnosed and fixed within a few days—The Diesel Dudes recommends against ignoring turbo codes since replacement turbos run $2,500-3,500 installed.

Q: How much does it cost to fix L5P Duramax turbo sticking?

Professional turbo cleaning for L5P Duramax VGT sticking runs $400-800 at most diesel shops, while a complete turbo replacement costs $2,500-3,500 with labor. If you're mechanically inclined, you can remove and clean the turbo yourself for under $100 in supplies and a weekend in the garage. The Diesel Dudes has seen guys successfully clean their VGT with walnut blasting or chemical soak methods. Catch it early and cleaning works great—wait too long and you're buying a new turbo.

Q: Will an L5P delete kit prevent turbo vane sticking?

Yes, deleting the EGR system on your L5P Duramax dramatically reduces soot buildup that causes turbo vane sticking since you're eliminating exhaust gas recirculation. Without EGR pumping sooty exhaust back through the intake, your turbo stays significantly cleaner over time. However, EPA penalties for emissions tampering can reach $45,268 per vehicle as of 2025, and deleted trucks can't pass emissions testing in regulated states. The Diesel Dudes carries complete L5P delete kits, but you need to understand the legal implications before pulling the trigger.

Q: How do I manually test if my L5P turbo vanes are stuck?

Remove the intake tubing to access the turbo inlet, then use a flashlight to locate the VGT actuator arm on the passenger side of the turbo housing. With the engine off and cool, gently push the actuator arm—it should move smoothly through its full range with light resistance. If it's stuck, jerky, or won't move at all, your vanes are carboned up. The Diesel Dudes recommends taking a video during testing so you can compare movement after cleaning to confirm you've fixed the problem.

Q: Does highway driving prevent L5P turbo vane problems?

Regular highway runs at 65+ mph for 30-45 minutes help burn off carbon deposits before they cement onto your L5P turbo vanes. The sustained high exhaust temps (1,200°F+) and consistent boost pressure keep the vanes moving and literally cook off lighter soot accumulation. Guys who tow regularly or do frequent highway miles typically see turbo sticking issues 30,000-50,000 miles later than city-only drivers. The Diesel Dudes recommends monthly "Italian tune-ups"—getting on the highway and running your truck hard through the gears to keep everything clean.

Q: Can I clean L5P turbo vanes without removing the turbo?

On-truck cleaning methods like seafoam through the intake or turbo cleaner sprays provide minimal results for L5P Duramax turbo sticking—they might free up slightly sticky vanes but won't fix serious carbon buildup. For real results, you need to remove the turbo and either walnut blast the vanes, soak them in cleaning solution, or manually scrape the carbon off. The Diesel Dudes has seen too many guys waste money on spray cleaners when their vanes needed proper removal and cleaning. If you're throwing codes, the turbo's gotta come off.
